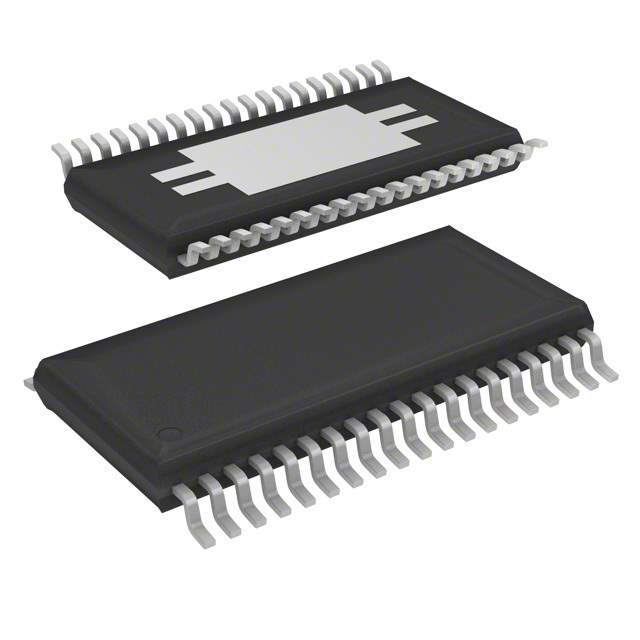

Overview of TIC12400QDCPRQ1

The TIC12400QDCPRQ1 is a sophisticated interface device from Texas Instruments, designed to address the needs of modern automotive applications that require direct interface with a wide range of sensors and switches. This product is part of Texas Instruments' extensive portfolio of automotive products, ensuring high reliability and performance for critical vehicle systems.

Key Features

• Multiplexed Inputs: The device supports up to 24 direct inputs, which can be configured as either wet or dry, to interface with various types of sensors and switches, providing flexibility in system design.
• Integrated Wetting Current: It offers programmable wetting current for each channel to clean contacts and reduce the likelihood of switch oxidation, enhancing the system's reliability.
• Advanced Diagnostics: With built-in diagnostic capabilities, the TIC12400QDCPRQ1 can detect open and short circuits, improving safety and robustness in automotive systems.
• Versatile Power Supply Range: The device operates over a broad power supply range, compatible with typical automotive battery voltages, ensuring stable performance in various operating conditions.
• Communication Interface: It includes a serial peripheral interface (SPI) for communication with microcontrollers, making it easy to integrate into existing automotive architectures.

Applications

The TIC12400QDCPRQ1 is ideal for a range of automotive applications, including:

• Body Control Modules (BCM)
• Advanced Driver Assistance Systems (ADAS)
• Vehicle Occupancy Detection
• Switch Panels and Clusters

Quality and Reliability

As an AEC-Q100 qualified device, the TIC12400QDCPRQ1 meets the stringent requirements of the automotive industry, ensuring reliability under extreme conditions. Its robust design and built-in protections make it a trusted choice for automotive engineers looking to create durable and efficient systems.

Conclusion

With its combination of flexibility, diagnostic capabilities, and robust design, the TIC12400QDCPRQ1 from Texas Instruments stands out as a comprehensive solution for interfacing with a wide array of sensors and switches in automotive environments. Its integration into vehicle systems contributes to enhanced functionality, safety, and end-user satisfaction.
