The TFP401PZPG4 is a high-performance PanelBus™ digital receiver from Texas Instruments, designed to facilitate the direct connection between digital video sources and various display devices. This integrated circuit is particularly suitable for applications requiring high-speed digital video and audio reception, such as digital projectors, digital televisions, and other advanced video display systems.

Key Features

• High-Quality Digital Video Interface: The TFP401PZPG4 is compliant with the DVI 1.0 specification, providing a robust digital interface for video transmission.
• Wide Pixel Clock Range: It supports a wide pixel clock range of 25 MHz to 165 MHz, accommodating various display resolutions, including HDTV formats and PC graphics.
• Integrated HDCP Decoder: The device includes an HDCP (High-bandwidth Digital Content Protection) decoder, allowing for the secure transmission of protected content.
• Flexible Color Depths: This receiver can handle different color depths, including 24-bit (8 bits per color) and 16-bit (reduced color depth) modes, ensuring compatibility with diverse content types.
• Plug and Play Functionality: With its I²C interface for EDID (Extended Display Identification Data) communication, the TFP401PZPG4 ensures easy installation and automatic configuration with connected display devices.

Technical Specifications

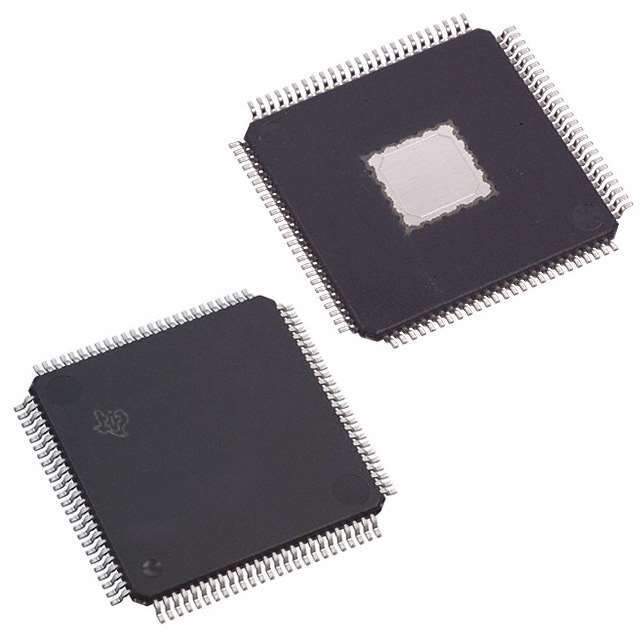

• Package: The TFP401PZPG4 comes in a 100-Pin HTQFP (Thin Quad Flat Pack) package, suitable for surface mount technology (SMT).
• Operational Temperature: It is designed to operate within a temperature range of 0°C to 70°C, ensuring reliability across various environments.
• Supply Voltage: The device operates at a supply voltage of 3.3V, making it compatible with common digital systems.

Applications

The TFP401PZPG4's versatility makes it an ideal choice for a broad array of digital video applications, including:

• Digital projectors
• High-definition televisions (HDTVs)
• Computer monitors
• Advanced display systems

Conclusion

In summary, the TFP401PZPG4 from Texas Instruments is a powerful and adaptable digital receiver, offering high-speed digital video and audio reception with HDCP support. Its compatibility with the DVI 1.0 standard and ability to work with a wide range of resolutions and color depths make it a top choice for manufacturers and designers of cutting-edge digital display products.
