Overview of TCA8418RTWR

The TCA8418RTWR is a sophisticated integrated circuit from Texas Instruments, designed to enhance the interface capabilities of various electronic devices. This hardware-managed keypad scan device is specifically engineered to detect key presses and releases, making it an ideal choice for applications requiring a reliable and efficient human interface. With its compact design and advanced features, the TCA8418RTWR stands out as a premier solution for keypad scanning in a range of products.

Key Features

• Keypad Matrix Support: The device supports a keypad matrix of up to 80 keys, providing ample flexibility for designers to implement extensive user interfaces.
• Interrupt Generation: It can generate an interrupt signal upon key press and release events, which ensures immediate attention by the host processor without the need for constant polling.
• I2C Interface: Equipped with an I2C-bus interface, the TCA8418RTWR offers a simple two-wire connection to microcontrollers, enhancing ease of integration and communication speed.
• Built-in Keypad Controller: The device includes a built-in keypad controller that handles the scanning of keys, reducing the processing burden on the host CPU and improving overall system efficiency.
• Auto-configuration: It features auto-configuration for open and shorted keys, which simplifies the initial setup process and enhances the reliability of the keypad interface.
• Multiple Key Press Detection: The TCA8418RTWR is capable of detecting multiple key presses simultaneously, enabling more complex user interactions.

Applications

The TCA8418RTWR is versatile and can be used in a variety of applications, including:

• Mobile phones and smartphones
• Personal digital assistants (PDAs)
• Consumer electronics
• Portable instrumentation
• Industrial control panels

Technical Specifications

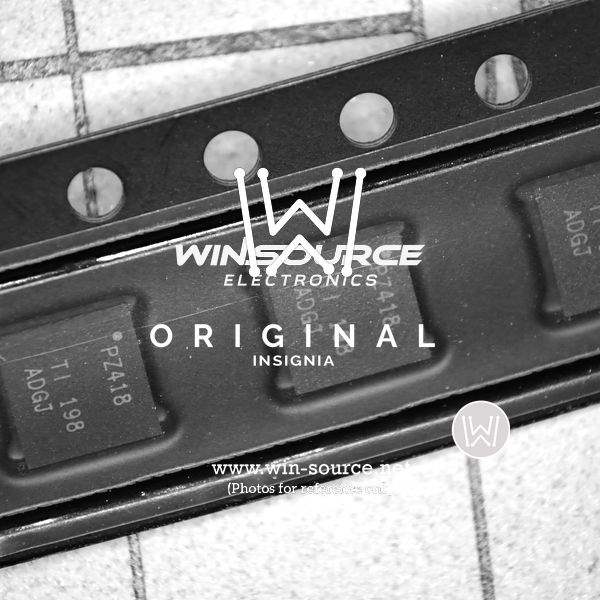

The TCA8418RTWR comes in a compact 24-pin QFN package and operates over a wide temperature range, making it suitable for diverse environments. Its low power consumption is an added benefit for battery-operated devices, ensuring longer operational times between charges.

With its robust feature set and reliable performance, the TCA8418RTWR from Texas Instruments represents a top-tier choice for designers looking to implement an efficient and user-friendly keypad interface in their electronic products.
