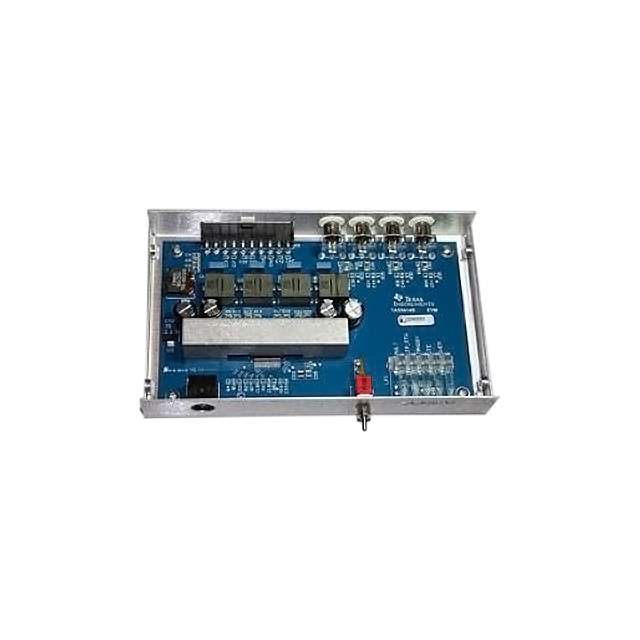

The TAS5414BQ1PHDEVM from Texas Instruments is a comprehensive evaluation module designed for audiophiles, engineers, and automotive audio system designers who demand high-quality sound and robust performance. This advanced tool enables users to thoroughly assess the capabilities of the TAS5414B, a high-efficiency, four-channel digital audio amplifier that is part of TI's PurePath™ HD technology suite.

Key Features

• High-Performance Audio: With the TAS5414B at its core, the EVM delivers exceptional audio quality with a high Signal-to-Noise Ratio (SNR) and low Total Harmonic Distortion (THD), ensuring crystal-clear sound reproduction.
• Four-Channel Amplification: The module supports a quad-channel output, making it ideal for multi-speaker configurations in automotive and home audio systems.
• Efficient Power Use: The TAS5414B incorporates advanced Class-D technology, providing high power efficiency and reducing heat dissipation, which is crucial for automotive and compact audio applications.
• Easy Integration: The EVM is designed for simple integration with a variety of audio sources and systems, allowing for quick and easy setup and testing.
• Diagnostic Features: Built-in diagnostics and protection features safeguard the amplifier against faults, ensuring reliability and longevity of the audio system.

Applications

The TAS5414BQ1PHDEVM is versatile and can be used in a range of applications, including:

• Automotive audio systems
• Home theater systems
• Professional audio equipment
• Active speaker systems

Technical Specifications

The evaluation module includes a variety of technical features that showcase the TAS5414B's capabilities:

• Supply Voltage Range: 10.8 V to 26.4 V
• Output Power: Up to 23 W per channel into 4 ohms
• Audio I/O Connectivity: Differential inputs and PWM output stages
• Thermal and Overcurrent Protection

With the TAS5414BQ1PHDEVM, Texas Instruments provides a powerful platform for developing and testing high-fidelity audio solutions. Whether for automotive entertainment or high-end audio systems, this evaluation module is an essential tool for achieving the best audio performance.
