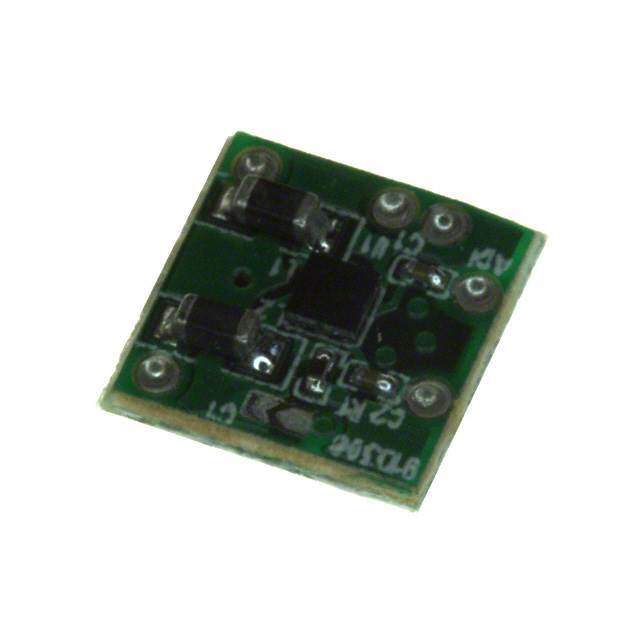

The SSM2317-MINI-EVALZ from Analog Devices Inc. is a compact, high-performance evaluation board designed for testing the capabilities of the SSM2317 audio amplifier. This evaluation platform is an essential tool for engineers and designers who wish to assess the functionality and acoustic performance of the SSM2317 in their audio applications.

Key Features

• Integrated SSM2317 Amplifier: The board comes equipped with the SSM2317, a fully integrated, high-efficiency, Class-D audio amplifier which is capable of delivering 3W of continuous output power with < 1% THD+N.
• Plug-and-Play: Designed for ease of use, the SSM2317-MINI-EVALZ can be easily connected to any audio source without the need for complex setup procedures.
• Single-Supply Operation: The evaluation board operates on a single supply voltage, simplifying power management in portable applications.
• Flexible Input Configuration: It supports both single-ended and differential input configurations, offering versatility in various audio signal scenarios.
• Thermal Overload and Short-Circuit Protection: The board includes built-in protection features that safeguard the amplifier from potential damage due to overheating or output shorts.

Applications

The SSM2317-MINI-EVALZ is an ideal solution for a wide range of audio applications, including:

• Portable and battery-powered audio devices
• Mobile phones and tablets
• Wireless speakers and docks
• Home entertainment systems
• Active speaker systems

Design Support

Analog Devices Inc. offers comprehensive design support for the SSM2317-MINI-EVALZ evaluation board. This includes detailed documentation, reference designs, and technical support from ADI's experienced engineers. With these resources, developers can streamline their design process and bring high-quality audio products to market more quickly.
