The SN74LXC1T45DBVR from Texas Instruments is a versatile, single-bit, dual-supply bus transceiver that is designed to provide seamless communication between devices operating at different voltage levels. This integrated circuit is part of the LXC family, known for its low-voltage capabilities and compatibility with mixed-voltage systems.

Key Features

• Voltage-Level Translation: The SN74LXC1T45DBVR is capable of translating signals between two different voltage domains, ranging from 1.65V to 5.5V on either side, making it ideal for multi-voltage systems.
• Low Power Consumption: With its LXC technology, it ensures low power dissipation, which is crucial for battery-operated and power-sensitive applications.
• High-Speed Operation: This transceiver supports high-speed data transmission, ensuring minimal signal delay and high data integrity.
• Direction Control: The direction of data flow is controlled by an input pin (DIR), providing flexibility in bidirectional communication.
• Output Enable (OE) Feature: An OE input pin allows the user to put the outputs in high-impedance state, effectively disconnecting the bus lines.

Applications

The SN74LXC1T45DBVR is suitable for a wide range of applications where voltage level translation is required, such as:

• Multivoltage digital system interconnection
• Signal gating
• Bus isolation
• Low-power computing
• Consumer electronics

Package and Quality

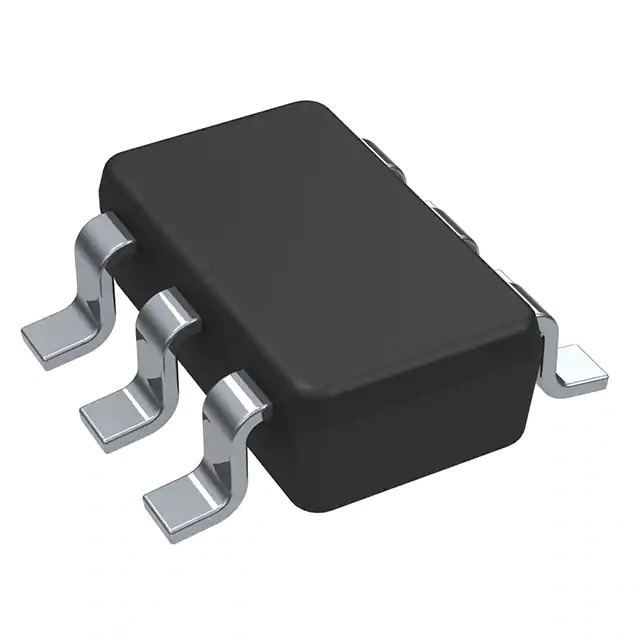

The device comes in a compact SOT-23-6 package, making it suitable for space-constrained applications. Texas Instruments' commitment to quality ensures that the SN74LXC1T45DBVR meets the industry's high standards for performance and reliability.

Ordering Information

For ordering, the SN74LXC1T45DBVR is available through Texas Instruments' distributors and online. The product comes in tape and reel packaging, facilitating easy assembly during the manufacturing process.
