SN74LV123ATPWRG4Q1 - Texas Instruments Dual Retriggerable Monostable Multivibrator

The SN74LV123ATPWRG4Q1 from Texas Instruments is a high-performance, dual retriggerable monostable multivibrator with a wide range of applications in timing, pulse generation, and edge-triggered applications. This integrated circuit is part of Texas Instruments' advanced low-voltage (LV) series, which is designed to operate at a nominal voltage of 3.3V, making it ideal for interfacing with modern microcontrollers and digital systems that require low power consumption and high-speed operation.

With its retriggerable function, the device ensures that output pulses can be extended with each new trigger event, providing flexibility for a variety of pulse and timing applications. The SN74LV123ATPWRG4Q1 is characterized for operation from -40°C to 85°C, making it suitable for automotive and industrial environments where temperature resilience is crucial.

Key features of the SN74LV123ATPWRG4Q1 include:

• Wide Operating Voltage Range of 2V to 5.5V, accommodating various logic levels and power supplies.
• Maximum t_pd of 12 ns at 5V, ensuring high-speed performance that is critical for time-sensitive applications.
• Low Power Consumption, with a typical I_CC of 20 μA, contributing to energy-efficient designs.
• Edge Triggered from Active-High or Active-Low Gated Logic Inputs, providing versatility in system design.
• Outputs Can Drive Up To 10 LSTTL Loads, making it compatible with legacy logic systems and providing sufficient drive capability for most applications.
• Schmitt-Trigger Circuitry on Trigger Inputs for improved noise immunity and stable pulse triggering.

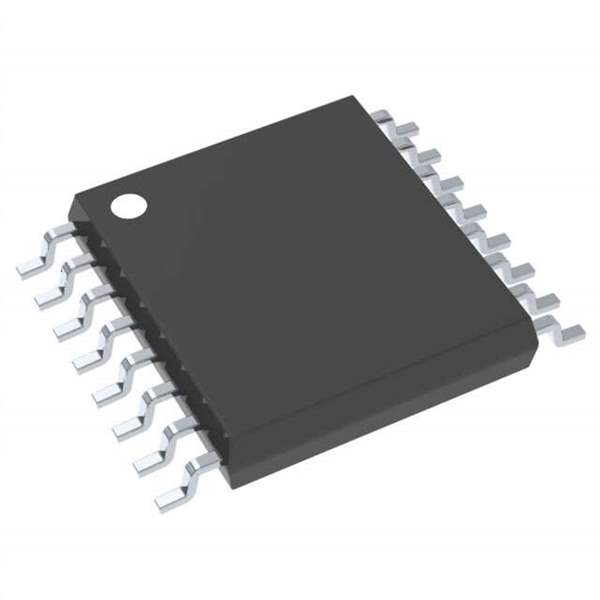

• Available in TSSOP (Thin Shrink Small Outline Package) form factor, which is ideal for space-constrained applications.

The device's robust design includes latch-up performance that exceeds 250 mA per JESD 17, ESD protection, and the ability to handle significant capacitive loads while maintaining clear, crisp timing signals. The SN74LV123ATPWRG4Q1 is a versatile and reliable solution for designers looking to incorporate precise timing functionality into their automotive or industrial control systems.

Whether you're designing complex timing circuits, pulse generators for digital systems, or requiring a reliable monostable multivibrator for edge-triggered applications, the SN74LV123ATPWRG4Q1 from Texas Instruments is an excellent choice that combines performance with durability.
