Product Overview: SN74ALVCHG162280GR by Texas Instruments

The SN74ALVCHG162280GR is a high-performance integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This particular device belongs to the ALVCH series, which is known for its low-voltage, high-speed operation. The product is a 12-bit to 24-bit multiplexed D-type latch with 3-state outputs, making it an ideal choice for applications requiring high-speed data storage and transfer.

Key Features

• High-Speed Operation: The SN74ALVCHG162280GR is capable of operating at high speeds, which is essential for modern digital systems that require rapid data processing.
• Low-Voltage Operation: This device operates at a low voltage range, which helps in reducing power consumption without sacrificing performance.
• Bus-Hold Data Inputs: The latch features bus-hold data inputs, which eliminate the need for external pull-up or pull-down resistors and simplify board design.
• 3-State Outputs: The 3-state outputs allow for connection to a bus-oriented system, providing high-impedance states to ensure that the outputs are effectively disconnected when not in use.

Applications

The versatility of the SN74ALVCHG162280GR makes it suitable for a wide range of applications, including:

• Data storage and retrieval systems
• Communication interfaces
• High-speed data paths
• Bus interface and expansion

Product Specifications

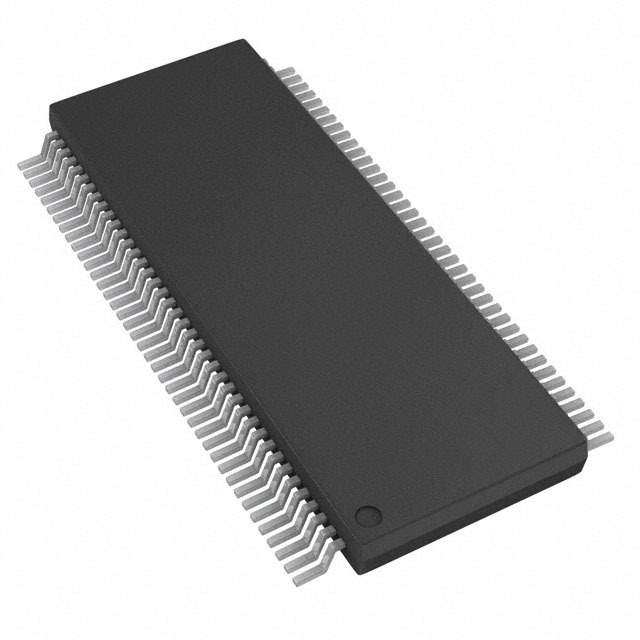

• Package: The device comes in a TSSOP (Thin Shrink Small Outline Package) form factor, which is ideal for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range, ensuring reliability and performance in extreme conditions.
• RoHS Compliant: The product adheres to the RoHS directive, which limits the use of certain hazardous substances in electronic equipment.

The SN74ALVCHG162280GR represents Texas Instruments' commitment to providing advanced technology that meets the needs of a rapidly evolving electronic industry. Its high-speed, low-voltage operation combined with the robustness and reliability of TI's products make it a top choice for designers and engineers looking to create efficient and high-performing systems.
