Products specifications

Category Integrated Circuits (ICs)>Logic - Specialty Logic
Mfr Texas Instruments
Series 74ABT
Package Tape & Reel (TR)
Product Status Obsolete
Logic Type Scan Test Device with Bus Transceiver and Registers
Supply Voltage 4.5V ~ 5.5V
Number of Bits 8
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)

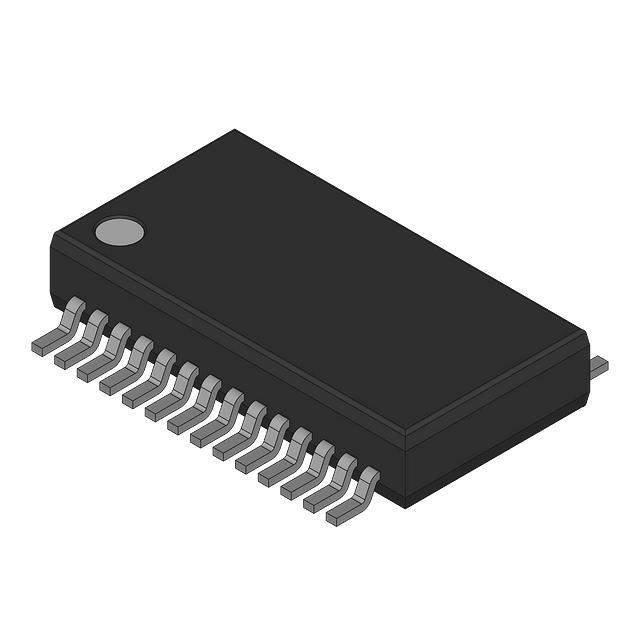

Package / Case 28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package 28-BSSOP
Base Product Number 74ABT8652
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1256287-SN74ABT8652DLR
Ultra Librarian 3D Model Ultra Librarian SN74ABT8652DLR CAD Model

Description

SN74ABT8652DLR by Texas Instruments

The SN74ABT8652DLR is a high-performance integrated circuit designed by Texas Instruments, known for its reliability and efficiency in digital applications. This particular IC belongs to the ABT family, which stands for Advanced BiCMOS Technology, combining the best of Bipolar and CMOS transistors to deliver superior speed and output drive over comparable CMOS devices.

At the heart of the SN74ABT8652DLR is an octal bus transceiver and register, featuring two sets of eight D-type flip-flops with separate input and output controls for each byte. This allows for efficient and flexible data transfer and storage. The device operates with a wide voltage range, typically from 4.5V to 5.5V, making it versatile for interfacing with a variety of logic families.

One of the key attributes of the SN74ABT8652DLR is its tri-state outputs, which can be set to a high impedance state, effectively disconnecting the output from the circuit. This is particularly useful for creating bidirectional bus systems, as it allows multiple devices to share the same data lines without interfering with each other when they are not actively driving the bus.

The device also features a latch-up performance that exceeds 250mA per JESD 17, which is a testament to its robustness and reliability in harsh electrical environments. Moreover, ESD protection is also incorporated, ensuring that the device remains stable and functional even when subjected to electrostatic discharges.

For ease of implementation, the SN74ABT8652DLR comes in a surface-mount package, specifically the SSOP (Shrink Small Outline Package) with 48 pins. This compact form factor is well-suited for space-constrained applications while providing adequate pin separation for ease of PCB routing.

In summary, the SN74ABT8652DLR from Texas Instruments is an excellent choice for designers who require a high-speed, bidirectional communication interface with robust performance. Whether used in computing, networking, or industrial applications, this IC provides a reliable solution for complex data management tasks.
