Products specifications

Category Integrated Circuits (ICs)>Interface - Controllers
Mfr Microchip Technology
Package Tape & Reel
Protocol Ethernet
Function Bridge, USB to Ethernet
Interface USB
Standards USB 2.0
Voltage - Supply 1.8V, 3.3V
Current - Supply 60mA
Temperature Range - Operating 0°C ~ 70°C

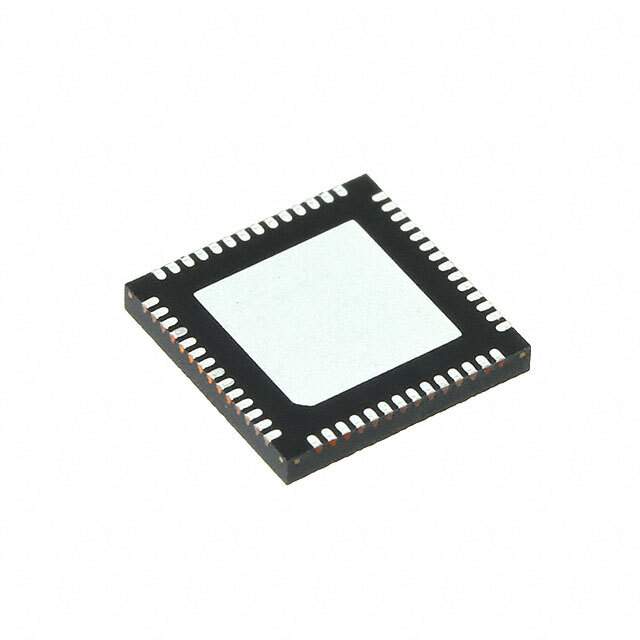

Package / Case 56-VFQFN Exposed Pad
Supplier Device Package 56-SQFN (8x8)
Base Product Number LAN7850
Other Names LAN7850T/8JX,LAN7850T/8JXDKR,LAN7850T/8JXCT,LAN7850T/8JXTR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8542.39.0001
Win Source Part Number 1261703-LAN7850T/8JX
Ultra Librarian 3D Model Ultra Librarian LAN7850T/8JX CAD Model

Description

Microchip Technology LAN7850T/8JX - High-Performance USB 3.1 to Ethernet Controller

The LAN7850T/8JX is a cutting-edge USB 3.1 Gen 1 to 10/100/1000 Ethernet controller that provides a high-performance and cost-effective USB to Ethernet connectivity solution. Manufactured by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions, the LAN7850T/8JX is designed to deliver exceptional performance for embedded and networking applications.

Featuring a SuperSpeed USB 3.1 Gen 1 interface with support for 5 Gbps data rates, the LAN7850T/8JX ensures fast and reliable data transfer between the host system and the network. The device is optimized for power efficiency and minimal footprint, making it an ideal choice for portable electronic devices, gaming consoles, and industrial automation systems.

The LAN7850T/8JX supports both full-duplex and half-duplex operations at 10/100/1000 Mbps, and it is compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards. This ensures broad compatibility with existing network infrastructure and facilitates easy integration into various systems. Additionally, the controller includes advanced features such as checksum offload engine, jumbo frame support, and full duplex flow control to enhance network performance and reduce CPU load.

With its integrated 10/100/1000 Gigabit Ethernet MAC and PHY, the LAN7850T/8JX is a complete solution that simplifies design and reduces time to market. The device also offers various power management features, including Energy Efficient Ethernet (IEEE 802.3az) and numerous power-down states, which enable the design of energy-saving systems.

The LAN7850T/8JX is available in a compact 56-pin QFN package, making it suitable for space-constrained applications. It is also supported by Microchip's comprehensive design and development tools, including software drivers and evaluation boards, to assist designers in rapidly bringing their products to market.

In summary, the Microchip Technology LAN7850T/8JX Ethernet controller is a high-quality, feature-rich solution that offers designers a seamless and efficient way to integrate USB 3.1 Gen 1 to Ethernet connectivity into their products.
