The SN65DSI83ZXHR is a state-of-the-art bridge chip designed by Texas Instruments to facilitate the interface between mobile processors and high-resolution displays. This chip is part of the Texas Instruments' DSI to FlatLink™ product line, which is renowned for its ability to convert MIPI® DSI (Mobile Industry Processor Interface Display Serial Interface) signals into LVDS (Low-Voltage Differential Signaling) outputs.

Key Features

• MIPI DSI to LVDS Conversion: The SN65DSI83ZXHR efficiently converts data from a DSI source to a LVDS display panel, making it ideal for applications where high-speed data transfer and minimal signal degradation are essential.
• High-Resolution Support: This chip supports display resolutions up to FHD (1920x1080) and WUXGA (1920x1200) at 60 Hz refresh rate, ensuring crisp and clear visuals for a variety of screen sizes.
• Single/Dual-Channel LVDS Output: It provides flexibility with single-channel or dual-channel LVDS output, catering to different display interface requirements.
• Low Power Consumption: Designed with power efficiency in mind, the SN65DSI83ZXHR minimizes power consumption, which is critical for battery-operated devices.
• Programmable: With an integrated programmable EEPROM, the chip allows for customization and easy configuration of display parameters to meet specific design needs.

Applications

The versatility of the SN65DSI83ZXHR makes it suitable for a wide range of applications, including:

• Smartphones and Tablets
• Infotainment Systems in Automotive
• Portable Media Players
• Digital Signage
• Personal Computing Devices

Technical Specifications

Below are some of the technical specifications for the SN65DSI83ZXHR:

• Supply Voltage: 1.1V Core, 1.8V to 3.3V I/O
• Operating Temperature Range: -40°C to 85°C

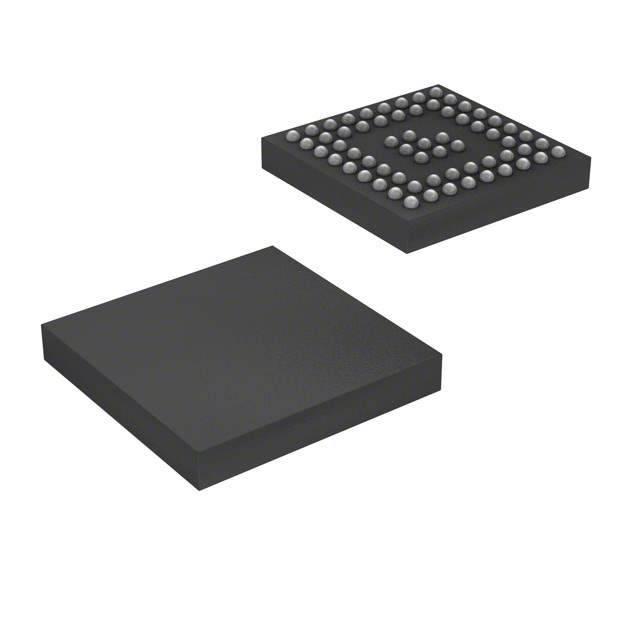

• Package: 64-ball VQFN
• Compliance: Meets or exceeds the MIPI DSI Specification

For designers looking to bridge the gap between mobile processors and high-definition displays, the SN65DSI83ZXHR offers a reliable and efficient solution with its advanced feature set and Texas Instruments' commitment to quality and performance.
