Microchip Technology's AT24C16D-MAHM-T EEPROM

The AT24C16D-MAHM-T is a high-performance, 16-Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) device from the renowned manufacturer, Microchip Technology. This integrated circuit is designed to provide a reliable and flexible non-volatile data storage solution for a wide array of applications, ranging from consumer electronics to industrial automation systems.

One of the key features of the AT24C16D-MAHM-T is its I²C-compatible (2-wire) serial interface, which allows for simple and efficient integration into most microcontroller-based systems. The device supports a supply voltage range of 1.7V to 5.5V, making it versatile for both low-power and standard applications. The operating temperature range of -40°C to +85°C ensures reliability and performance under extreme conditions.

This EEPROM offers a total storage capacity of 16 kilobits, organized as 2048 pages of 8 bytes each. The page write buffer allows for up to 16 bytes to be written in a single write cycle, enhancing data throughput and minimizing write operation times. The AT24C16D-MAHM-T also provides a write cycle time of 5 ms (max), ensuring quick data storage and retrieval.

For data protection, the device includes a write protect pin to prevent inadvertent write operations. Additionally, the EEPROM has a self-timed write cycle with auto-clear, which simplifies the write process and reduces the need for software polling. The endurance of the memory cells is rated at 1 million write cycles, with a data retention of over 100 years, highlighting the device's durability and longevity.

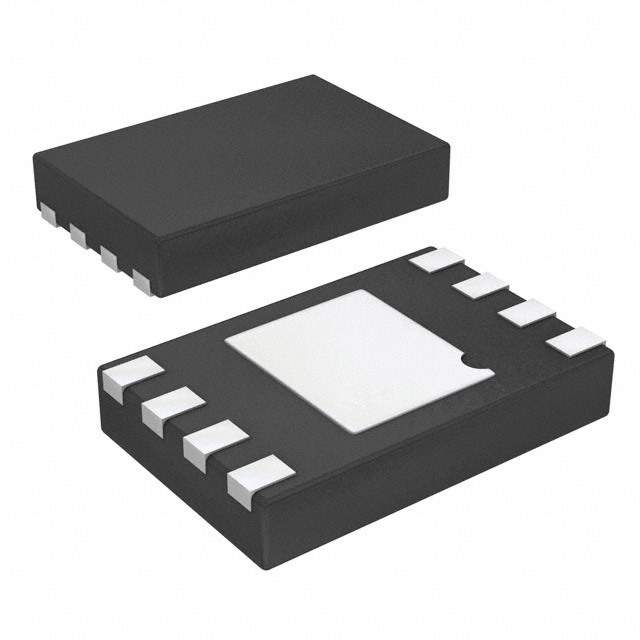

The AT24C16D-MAHM-T is available in an 8-lead Mini-Map (MLP 2x3) package, which is both space-efficient and suitable for PCB designs where space is at a premium. The lead-free and RoHS-compliant package ensures environmental sustainability and adherence to global regulations.

In summary, the AT24C16D-MAHM-T EEPROM from Microchip Technology is an excellent choice for designers looking for a dependable and compact non-volatile memory solution with a wide operating range, high endurance, and robust data protection features.
