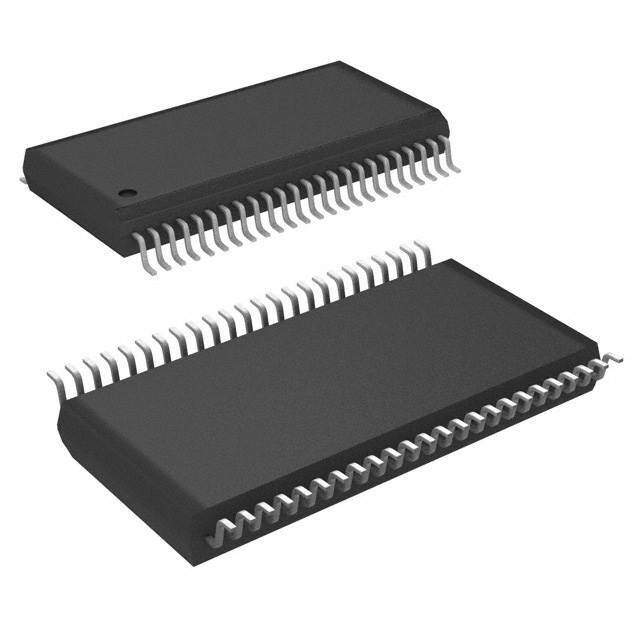

SCANSTA111MT/NOPB - Texas Instruments

The SCANSTA111MT/NOPB is a sophisticated integrated circuit from Texas Instruments, designed to enhance the capabilities and performance of boundary-scan test applications. This device is a part of the SCANSTA family and is known for its reliability and efficiency in complex electronic systems.

Key Features

• Advanced Diagnostic Capabilities: The SCANSTA111MT/NOPB offers enhanced diagnostic functions that facilitate easier identification and resolution of system faults, making it an invaluable tool for maintenance and troubleshooting.
• High-Speed Operation: With its ability to support high-speed data transfer, this device ensures quick and efficient communication within the system, which is critical for time-sensitive applications.
• Multiple Test Access Ports (TAPs): It provides multiple TAPs, allowing for simultaneous testing of various parts of the system, thereby reducing overall test time and increasing throughput.
• Flexible Integration: The SCANSTA111MT/NOPB is designed for easy integration into a variety of system architectures, making it a versatile solution for boundary-scan test applications.
• Robust Construction: Housed in a compact LQFP package, this device is built to withstand the rigors of complex electronic environments, ensuring long-term stability and performance.

Applications

The SCANSTA111MT/NOPB is suitable for a wide range of applications, particularly in the fields of telecommunications, computing, and industrial control systems. Its ability to perform boundary-scan tests with precision and speed makes it an essential component in the development and maintenance of printed circuit boards and complex integrated systems.

Product Specifications

The device comes in a 48-pin LQFP (Low Profile Quad Flat Package) and operates over a broad temperature range. It is designed to be compatible with the IEEE 1149.1 standard, which is the common framework for test access ports and boundary-scan architectures. The NOPB designation indicates that the product is lead-free and RoHS compliant, adhering to environmental standards for hazardous substances.

In summary, the SCANSTA111MT/NOPB from Texas Instruments is a state-of-the-art solution for enhancing the capabilities of boundary-scan testing. Its robust feature set and flexible application range make it a go-to choice for engineers and technicians looking to improve their system's testability and reliability.
