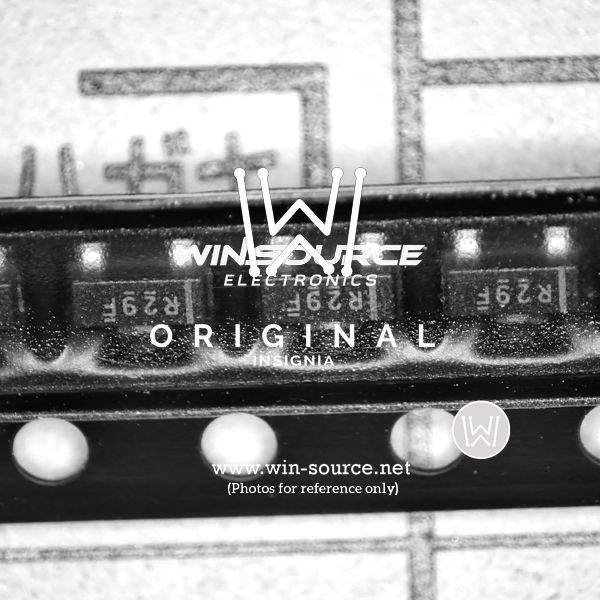

REF2940AIDBZT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Series
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 4.096V
Output Current 25mA
Tolerance ±2%
Temperature Coefficient 100ppm/°C
Noise - 0.1Hz to 10Hz 45μVp-p
Noise - 10Hz to 10kHz 128μVrms
Voltage - Input 4.146 V to 5.5 V
Operating Supply Current 59μA
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 083733-REF2940AIDBZT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian REF2940AIDBZT CAD Model

Description

The REF2940AIDBZT is a high precision, low power, low dropout voltage reference from Texas Instruments, a leading semiconductor manufacturer known for their innovative product range.

  • Output Voltage: Fixed voltage reference with a 4.096V output voltage.
  • Initial Accuracy: 0.2%.
  • Temperature Coefficient: 10 ppm/°C.
  • Quiescent Current: Only 100uA.
  • Dropout Voltage: 0.2V.
  • Package: Small SOT-23-6 package.
