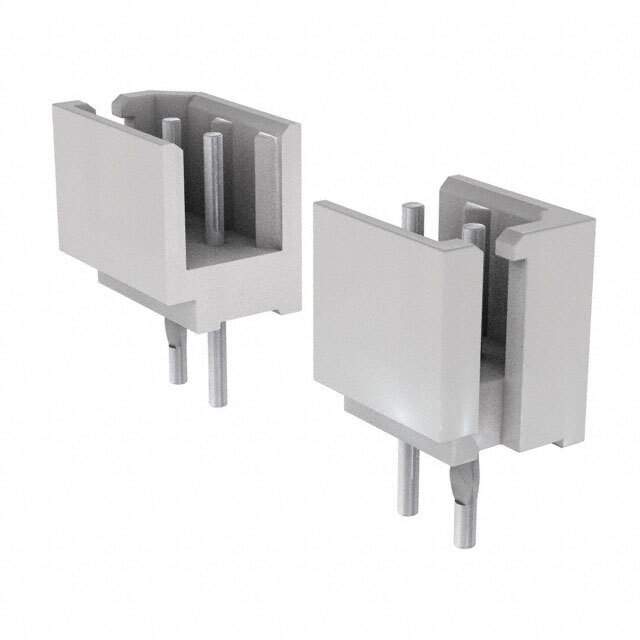

0099990996 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.138" (3.50mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.350" (8.89mm)
Insulation Height 0.232" (5.90mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 160.0µin (4.06µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 160.0µin (4.06µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 009999
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5267-12A-X,0099-99-0996,99-99-0996,99990996,009999-0996
Standard Package 8,000
Win Source Part Number 1332893-0099990996
Ultra Librarian 3D Model Ultra Librarian 0099990996 CAD Model

Description

The Molex 12-position header connector is a male pin type component with a pitch of 0.098" (2.50mm).

  • Positions: 12
  • Type: Header
  • Contact Type: Male Pin
  • Pitch: 0.098" (2.50mm)
  • Contact Finish Thickness (Mating): 160.0µin (4.06µm)
  • Contact Finish Thickness (Post): 160.0µin (4.06µm)
  • Shrouding: Shrouded with 4 Walls
  • Insulation Color: Natural
  • Contact Length (Mating): 0.138" (3.50mm)
  • Contact Length (Post): 0.138" (3.50mm)
  • Overall Contact Length: 0.350" (8.89mm)
  • Insulation Height: 0.232" (5.90mm)
  • Contact Shape: Circular
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • MSL Level: Unlimited
