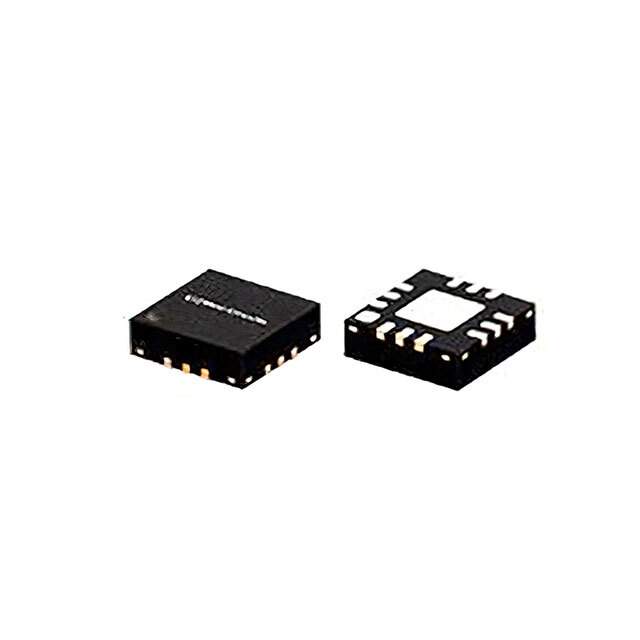

LHA-13LN+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Frequency 1MHz ~ 1GHz
P1dB 24.2dBm
Gain 20.1dB
Noise Figure 1.2dB
RF Type CATV, Cellular
Voltage - Supply 3V, 5V
Current - Supply 143mA
Test Frequency 250MHz
Mounting SMD (SMT)
Package / Case 12-VQFN Exposed Pad
Supplier Device Package DQ1225
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Other Names 3157-LHA-13LN+CT,3157-LHA-13LN+TR,3157-LHA-13LN+DKR
Standard Package 1,000
Win Source Part Number 1069685-LHA-13LN+
Ultra Librarian 3D Model Ultra Librarian LHA-13LN+ CAD Model

Description

The Mini-Circuits LHA-13LN+ is an RF amplifier used in various electronic devices.

  • Category: Part of the RF/IF and RFID>RF Amplifiers category
  • Test Frequency: 250MHz
  • Frequency Range: 1MHz to 1GHz
  • Gain: 20.1dB
  • Noise Figure: 1.2dB
  • Current Supply: 143mA
  • P1dB: 24.2dBm, making it ideal for use in CATV and Cellular devices
  • Voltage Supply: 3V and 5V
  • Package: 12-VQFN Exposed Pad
  • Suitability: This product is an excellent choice for various RF applications.
