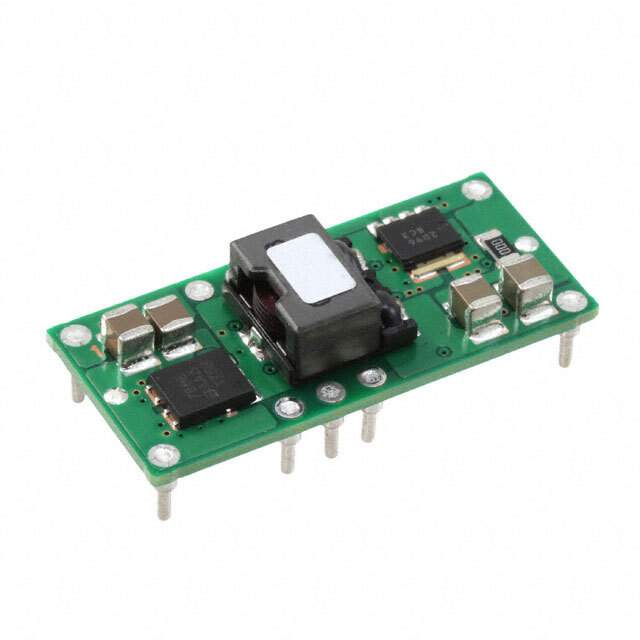

PTH12010YAH Real Image
Same model may have multiple batches, images only for reference.

PTH12010YAH

Part No PTH12010YAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .55-1.8V 12A TH 10DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH12010
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.55 ~ 1.8 V
Current - Output (Max) 12A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 85%
Power (Watts) - Max 21.6W
Catalog PTH12010 Series
Win Source Part Number 062184-PTH12010YAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12010YAH CAD Model

Description

Product PTH12010YAH is a high-performance, non-isolated power module from Texas Instruments, a leading global semiconductor company.

  • Input Voltage Source: 8V to 14V
  • Output Voltage Range: Adjustable from 0.8V to 5.5V
  • Output Current: Up to 10A
  • Feature: Synchronous rectification
  • Protection Mechanisms: Over-temperature and under-voltage lockout protections, as well as output over-current and short-circuit protections
  • Control: On/Off inhibit control
