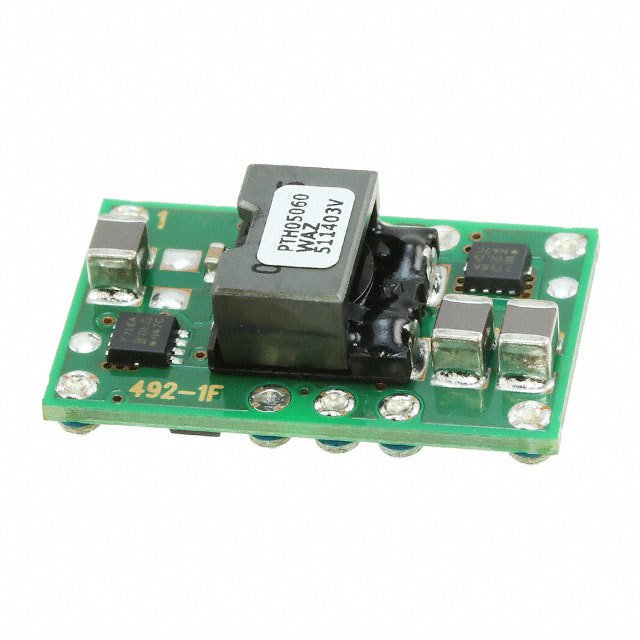

The PTH05060WAZT is a state-of-the-art non-isolated power module manufactured by Texas Instruments, renowned for their innovation in the semiconductor industry. This module is part of the PTH series, which is celebrated for its exceptional performance in point-of-load applications where efficiency, reliability, and a high power density are of paramount importance.

Key Features

• Wide Input Range: The PTH05060WAZT boasts a wide input voltage range of 4.5V to 14V, making it versatile for various applications and ensuring stable operation under fluctuating input conditions.
• Adjustable Output Voltage: This module offers an adjustable output voltage from 0.8V to 3.6V, providing flexibility to power a broad range of devices and circuits.
• High Efficiency: With an efficiency rate that can reach up to 95%, this power module ensures minimal energy loss and heat generation, thereby enhancing the overall system performance and longevity.
• Power Good Signal: It includes a 'power good' signal feature that provides a status output, indicating when the output voltage is within regulation.
• Thermal Shutdown: The built-in thermal shutdown feature protects the module from overheating, ensuring safe operation and preventing damage to the component and the system it powers.
• On/Off Inhibit: The PTH05060WAZT is equipped with an on/off inhibit control, allowing users to control the power module operation and conserve energy when the module is not in use.

Applications

Designed for a wide array of applications, the PTH05060WAZT is suitable for use in telecommunications equipment, distributed power architectures, networking equipment, servers, and industrial systems where efficient power conversion is critical.

Quality and Reliability

As with all Texas Instruments products, the PTH05060WAZT is built with quality and reliability in mind. It undergoes rigorous testing and quality control measures to ensure it meets the high standards expected by industry professionals. The module is also RoHS compliant, reflecting Texas Instruments' commitment to environmental responsibility.
