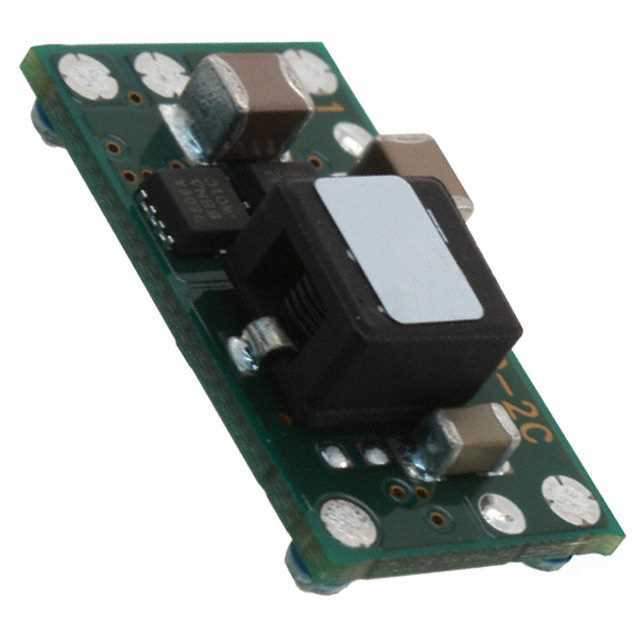

PTH12050WAZT Real Image
Same model may have multiple batches, images only for reference.

PTH12050WAZT

Part No PTH12050WAZT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 12VIN 6A ADJ SMD
Datasheet
PTH12050WAZT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH12050
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Mounting Style SMD/SMT
Package 6-SMD Module
Size / Dimension 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 33W
Win Source Part Number 026959-PTH12050WAZT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12050WAZT CAD Model

Description

The PTH12050WAZT is a high-performance, 12A rated, non-isolated power module from Texas Instruments.

  • Input Voltage Range: 8V to 14V
  • Output Voltage: Adjustable from 0.8V to 5.5V
  • Efficiency: Up to 96%
  • Feature: Auto-Track sequencing
  • Safety features: Overcurrent and overtemperature protection
  • Control: On/off inhibit control
  • Package: Compact, surface-mount
