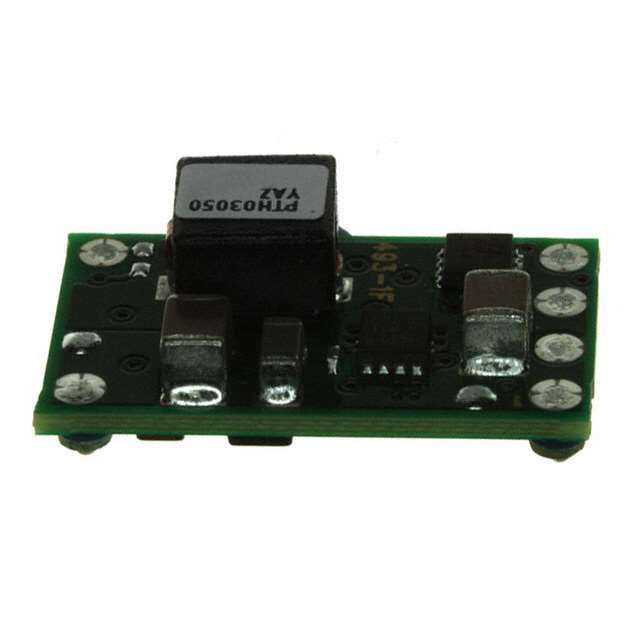

Same model may have multiple batches, images only for reference.
PTH03050YAST Texas Instruments
Same model may have multiple batches, images only for reference.

PTH03050YAST

Part No PTH03050YAST
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 3.3VIN 6A SMD
Datasheet
PTH03050YAST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03050Y
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.55 ~ 1.8 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Mounting Style SMD/SMT
Package 6-SMD Module
Size / Dimension 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 88%
Power (Watts) - Max 10.8W
Win Source Part Number 026938-PTH03050YAST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03050YAST CAD Model

Description

The Texas Instruments PTH03050YAST is an advanced, high-performance, non-isolated power module that is part of the PTH series.

  • Input Voltage Range: 8 to 14 Volts
  • Output Current: Up to 15 Amps
  • Output Voltage: Adjustable, ranging from 0.9 to 5.5 Volts
  • Efficiency: Up to 95% @ half load
  • Key Feature: Auto-track sequencing
  • Safety Features: Overcurrent and overtemperature protection
  • Package: Compact, surface-mount package (33.02 x 13.46 x 8.38 mm)
  • Compliance: RoHS compliant
