Same model may have multiple batches, images only for reference.

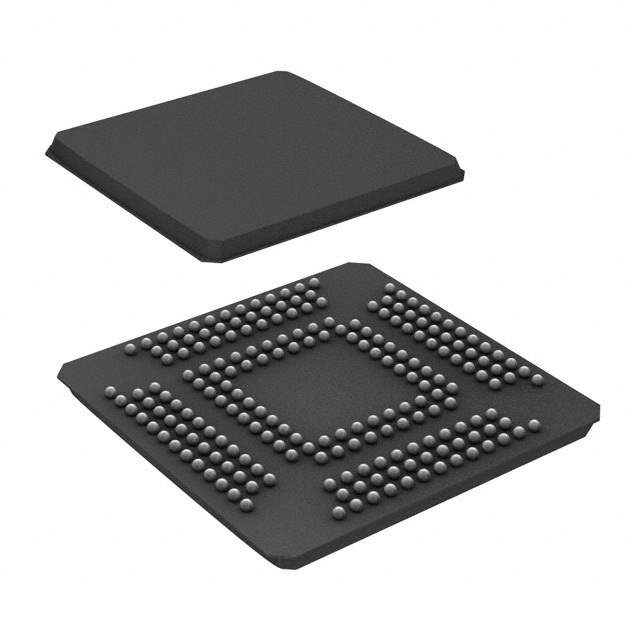

PCI1520IZHK Real Image
Same model may have multiple batches, images only for reference.

PCI1520IZHK

Part No PCI1520IZHK
Manufacturer Texas Instruments
Catalog Interface - Controllers
Description IC PC CARD CONTROLLER 209-BGA
Datasheet
PCI1520IZHK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Protocol PCI CardBus
Purpose Controller
Standards PC Card 7.1
Supply Voltage - Operating 3.3V, 5V
Temperature Range - Operating -40°C to 85°C
Case / Package 209-BGA MICROSTAR (16x16)
Win Source Part Number 209691-PCI1520IZHK
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCI1520IZHK CAD Model

Description

The PCI1520IZHK is a high-quality, advanced PC card controller developed by Texas Instruments, a leading global semiconductor company that designs and manufactures analog and embedded processing chips.

  • Function: PC card controller.
  • Compatibility: PC Card 95, PC Card 97, PC Card 98, PC Card 99, and PC Card 2001.
  • Operation: Supports both 3.3V and 5V operation.
  • Power Consumption: Low power consumption.
  • Data Throughput: Up to 132 Mbytes/sec.
  • Protection Features: Built-in overcurrent protection.
  • Power Management: Automatic power management.
