Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Texas Instruments
Series MSP430™ FRAM
Package Tape & Reel
Core Processor MSP430 CPU16
Core Size 16-Bit
Speed 24MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 44
Program Memory Size 32KB (32K x 8)
Program Memory Type FRAM
RAM Size 4K x 8
Supply Voltage - Operating 1.8V ~ 3.6V
Data Converters A/D 12x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)

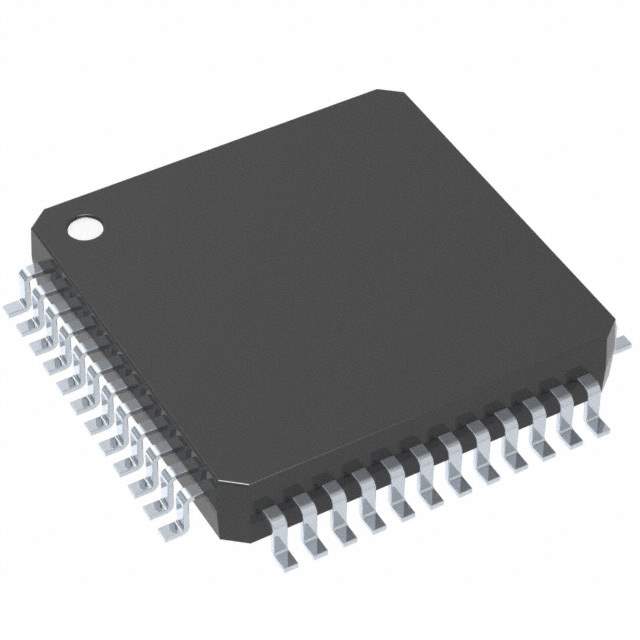

Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7x7)
Base Product Number 430FR2155
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Names 296-MSP430FR2155TPDKR,MSP430FR2155TPTR-ND,296-MSP430FR2155TPTR,296-MSP430FR2155TPCT
Standard Package 1,000
Win Source Part Number 984472-MSP430FR2155TPTR
Ultra Librarian 3D Model Ultra Librarian MSP430FR2155TPTR CAD Model

Description

The MSP430FR2155TPTR from Texas Instruments is a highly capable microcontroller that serves as an integral component in a wide range of electronic applications. This microcontroller is part of the MSP430 family, which is renowned for its low-power consumption and robust performance in embedded systems.

At the heart of the MSP430FR2155TPTR is a 16-bit RISC architecture that ensures efficient processing and optimal power management. This is particularly beneficial for battery-powered devices where energy efficiency is paramount. The microcontroller operates at a maximum frequency of 16 MHz, providing a balanced trade-off between speed and power usage.

One of the standout features of this microcontroller is its embedded Ferroelectric Random Access Memory (FRAM). With 32KB of FRAM, the MSP430FR2155TPTR offers a unique combination of speed, endurance, and flexibility in data storage. FRAM allows for faster write speeds and greater write endurance compared to traditional non-volatile memories, such as Flash, making it an excellent choice for applications requiring frequent or rapid data updates.

The MSP430FR2155TPTR also includes 4KB of SRAM, providing ample space for running applications and data manipulation. Its rich set of integrated peripherals includes multiple communication interfaces such as I2C, SPI, and UART, which facilitate easy connectivity with other components and devices. Additionally, it features a 10-bit analog-to-digital converter (ADC), timers, and built-in support for capacitive touch sensing, further broadening its application scope.

Designed with versatility in mind, this microcontroller is suitable for use in a variety of sectors, including industrial control, consumer electronics, and automation systems. Its small form factor, provided by the TSSOP (Thin Shrink Small Outline Package) with 38 pins, ensures that it can fit into compact spaces, making it ideal for space-constrained applications.

In summary, the MSP430FR2155TPTR microcontroller is a powerful and energy-efficient solution that combines speed, memory performance, and a rich peripheral set to address the needs of modern electronic designs. Its low-power operation and high functionality make it a go-to choice for designers looking to create sophisticated, yet power-conscious, products.
