Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6.1V
Power Dissipation - Pd 100W
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

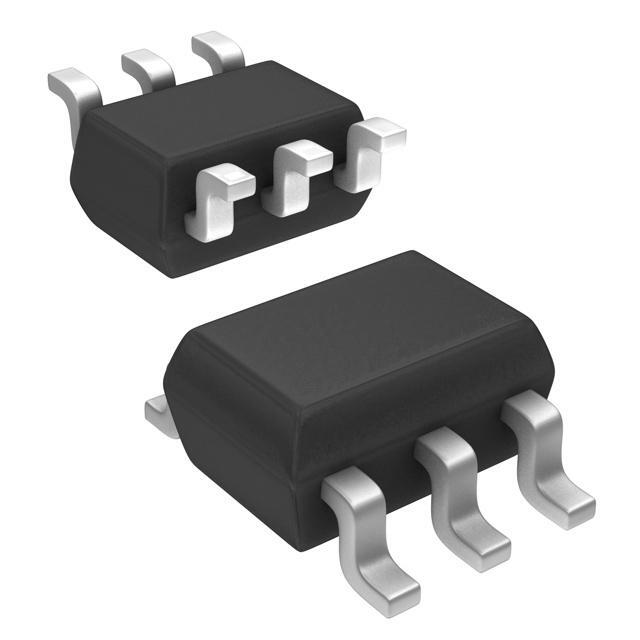

Case / Package SOT-323-6L
Win Source Part Number 015713-ESDA6V1-5W6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ESDA6V1-5W6
Introduction Date March 20, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ESDA6V1-5W6 CAD Model

Description

Product Overview: ESDA6V1-5W6 from STMicroelectronics

The ESDA6V1-5W6 is a state-of-the-art transient voltage suppressor (TVS) designed by STMicroelectronics, a leader in the semiconductor industry. This robust device is specifically engineered to protect sensitive electronic equipment from electrostatic discharge (ESD) and other voltage-induced transient events. The ESDA6V1-5W6 is a versatile solution that offers high surge protection for various applications, including USB interfaces, multimedia devices, and communication systems.

Key Features

  • Transient Protection: The ESDA6V1-5W6 provides excellent protection against ESD, up to 15kV (air discharge) and 8kV (contact discharge) as per IEC 61000-4-2 standard. Its fast response time ensures quick clamping of voltage spikes to safe levels.
  • Low Capacitance: With a low input capacitance, this device is ideal for protecting high-speed data lines without compromising signal integrity.
  • Multi-Line Protection: It is capable of protecting up to 5 data or power supply lines, offering a compact and efficient solution for multi-line applications.
  • Low Leakage Current: The ESDA6V1-5W6 is designed with a low leakage current, minimizing power loss when the device is in standby mode, thus making it suitable for battery-powered applications.
  • Package: The device comes in a SOT-666 package, which is known for its small form factor, allowing for space-saving PCB designs.

Applications

The ESDA6V1-5W6 can be utilized in a variety of applications requiring ESD protection. It is particularly useful in:

  • USB 2.0 and 3.0 interfaces
  • HDMI and Ethernet ports
  • Smartphones, tablets, and other portable devices
  • Set-top boxes, digital TVs, and other multimedia products
  • Industrial controls and automotive systems

Conclusion

In summary, the ESDA6V1-5W6 from STMicroelectronics is a powerful and reliable component that offers comprehensive protection against ESD and other transient voltage events. Its low capacitance and multi-line protection capabilities make it an excellent choice for safeguarding sophisticated electronic systems against sudden electrical disturbances. By incorporating the ESDA6V1-5W6 into their designs, engineers can significantly enhance the durability and reliability of their products.
