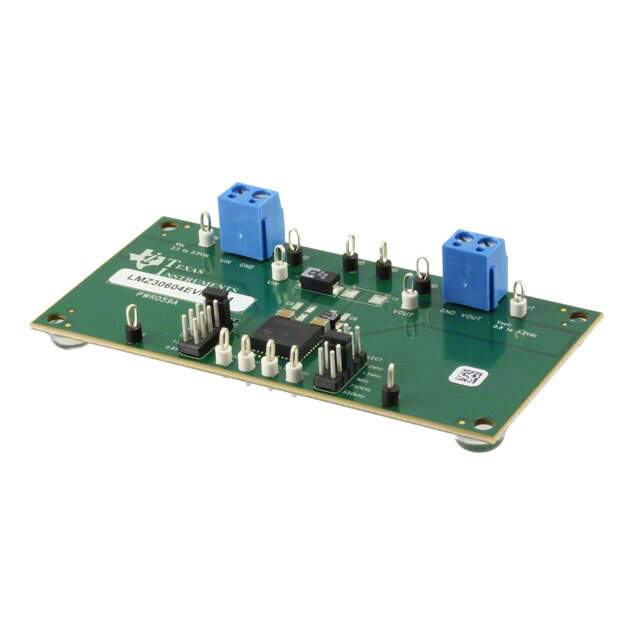

The LMZ30604EVM-001 from Texas Instruments is a fully assembled and tested circuit for evaluating the LMZ30604 Power Module. This evaluation module (EVM) is designed to help the user easily proceed with the evaluation of this highly efficient, power-dense solution that combines a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package.

Key Features

• Integrated Solution: The LMZ30604 includes an integrated inductor and passives to minimize external component count, which simplifies design and reduces board space.
• High Performance: With an input voltage range of 2.95V to 6V and up to 4A of output current, the LMZ30604 is capable of delivering high power density and efficiency, making it suitable for a wide range of applications.
• Adjustable Output: The output voltage can be adjusted from 0.8V to 3.6V, allowing for versatility in different system designs.
• Thermal Management: The innovative package design optimizes thermal performance, ensuring reliable operation under varying conditions.
• Protection Features: The module includes built-in over-temperature, over-current, and under-voltage lockout (UVLO) protections, enhancing system safety and robustness.

Applications

The LMZ30604EVM-001 is ideal for powering a wide range of applications, including:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Point-of-load applications

Easy to Use

The EVM provides a number of test points and jumpers for easy evaluation of the LMZ30604 power module. Users can quickly set up the EVM and adjust parameters to match their specific requirements, significantly accelerating the design process and time-to-market.

Support and Resources

Texas Instruments provides comprehensive technical documentation, including datasheets, user guides, and application notes, to support the LMZ30604EVM-001, ensuring a smooth integration into the target application.
