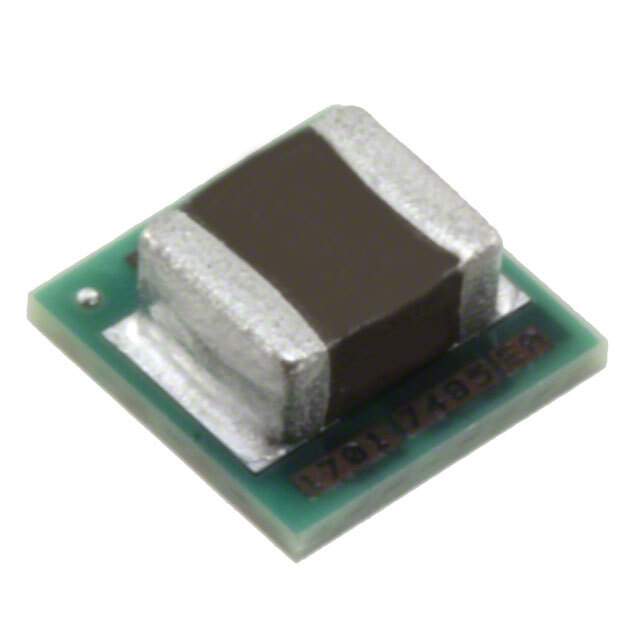

LMZ20502SILT Real Image
Same model may have multiple batches, images only for reference.

LMZ20502SILT

Part No LMZ20502SILT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 1-OUT 0.8V to 3.6V 2A 8-Pin uSIP SMD EP T/R / DC/DC CONVERTER 0.8-3.6V 7W
Datasheet
LMZ20502SILT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series SIMPLE SWITCHER? Nano
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Mounting Style SMD/SMT
Package 8-SMD Module
Size / Dimension 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm)
Operating Temperature Range -40°C ~ 125°C
Efficiency 89%
Win Source Part Number 141046-LMZ20502SILT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LMZ20502
Introduction Date December 12, 2014
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LMZ20502SILT CAD Model

Description

The is a high-efficiency, compact power module from Texas Instruments designed for use in small form-factor devices.

  • Output Current: 2A
  • Input Voltage Range: 2.75V to 5.5V
  • Output Voltage Range: 0.8V to 3.6V
  • Protection Features: Over-temperature, over-current, and under-voltage lockout
  • Features: Adjustable soft-start and tracking, high-efficiency synchronous buck regulator
  • Package Size: 6.7mm x 3mm x 1.4mm
  • Applications: Telecommunications, networking, and industrial systems
