The LMV7239M5X from Texas Instruments is a high-performance, low-voltage comparator designed for power-sensitive and space-constrained applications. This device operates with a supply voltage range from 2.7V to 5.5V, making it ideal for both 3V and 5V systems. Its low supply current of 60 µA (typical) is particularly suitable for battery-powered devices where power efficiency is critical.

Key Features

• Low Voltage Operation: Compatible with 2.7V to 5.5V supply voltages, it accommodates a broad range of applications.
• Ultra-Low Power Consumption: At a typical supply current of 60 µA, this comparator helps extend battery life in portable devices.
• Fast Response Time: The device boasts a propagation delay of 200 ns, ensuring quick response for time-sensitive circuits.
• Rail-to-Rail Output: The push-pull rail-to-rail output stage allows for direct interfacing with a wide variety of loads while minimizing power consumption.
• Input Offset Voltage: Features a low input offset voltage, which enhances accuracy in precision applications.

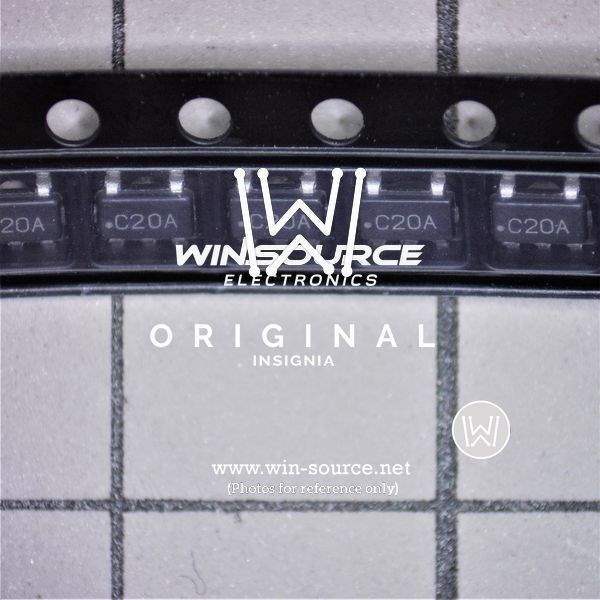

• Space-Saving Package: Supplied in a compact 5-pin SOT-23 package, it is perfect for systems where board space is at a premium.

Applications

The LMV7239M5X is versatile and can be used in a variety of applications such as:

• Notebook Computers
• Portable Communication Devices
• Battery-Powered Devices
• Threshold Detectors/Discriminators
• Window Comparators
• Zero-Crossing Detectors
• IR Receivers

Summary

The LMV7239M5X from Texas Instruments is an exceptional choice for designers looking for a low-power, high-speed comparator in a miniature package. Its low operating voltage and power consumption make it an excellent choice for portable and battery-operated applications, while its fast response time and rail-to-rail output ensure high performance in a wide range of signal processing tasks. The device's small footprint and high reliability underscore its suitability for high-volume, space-constrained designs.
