Product Overview: LMH7220MK from Texas Instruments

The LMH7220MK is a high-speed comparator designed by Texas Instruments (TI) that offers a perfect blend of speed, precision, and power efficiency. This comparator is part of TI's extensive portfolio of high-performance analog components and is designed to meet the needs of a wide range of applications, including time-critical signal processing and high-speed data acquisition systems.

Key Features

• Fast Propagation Delay: The LMH7220MK boasts a propagation delay of just 2.9 ns, making it one of the fastest comparators in its class. This enables rapid signal processing, which is crucial for high-speed applications.
• Low Voltage Operation: It operates at supply voltages ranging from 2.7V to 5.5V, allowing for flexible integration into various circuit designs.
• Low Power Consumption: With a power consumption of only 3.1 mA on a 5V supply, this comparator is an excellent choice for power-sensitive applications.
• Differential Inputs: The LMH7220MK features differential inputs that support a wide input common-mode voltage range, enhancing its ability to handle signals in noisy environments.
• Output Latch Function: An output latch enable (OLE) feature provides additional control by allowing the user to hold the output state, which is useful in time-multiplexed applications.
• Push-Pull Outputs: The push-pull TTL/CMOS compatible outputs eliminate the need for an external pull-up resistor, simplifying design and reducing component count.

Applications

The LMH7220MK is ideal for a variety of high-speed applications, including:

• Automatic test equipment
• High-speed signal processing
• Zero-crossing detectors
• Window comparators
• Pulse and square wave shapers
• Communication systems
• High-speed sampling circuits

Package and Quality

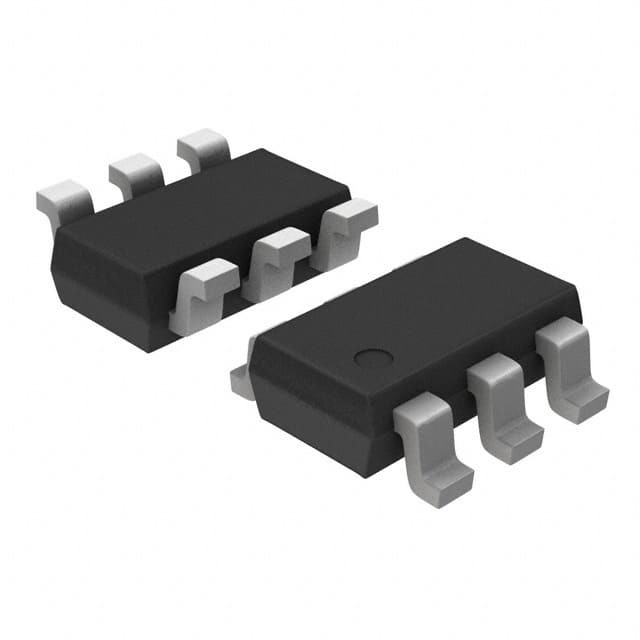

The LMH7220MK is available in a space-saving SOT-23-6 package, which is suitable for compact PCB layouts. Texas Instruments ensures high-quality standards, and this product is no exception, providing reliable performance even in demanding environments.

Conclusion

Overall, the LMH7220MK from Texas Instruments is an excellent choice for designers looking for a high-speed, low-power comparator that does not compromise on performance or efficiency. Its robust feature set and versatile applications make it a valuable component in any high-speed signal processing circuit.
