Product Overview: LM8333GGR8AXSX/NOPB

The LM8333GGR8AXSX/NOPB is a highly integrated device from Texas Instruments, designed to meet the demanding requirements of portable and space-constrained electronics. This product is a Mobile I/O Companion that supports keypad and general-purpose I/O expansion with a built-in keypad controller and GPIO (General Purpose Input/Output) interface. It is commonly used in applications such as mobile phones, PDAs, and other handheld devices where an extended keypad matrix and additional I/Os are required.

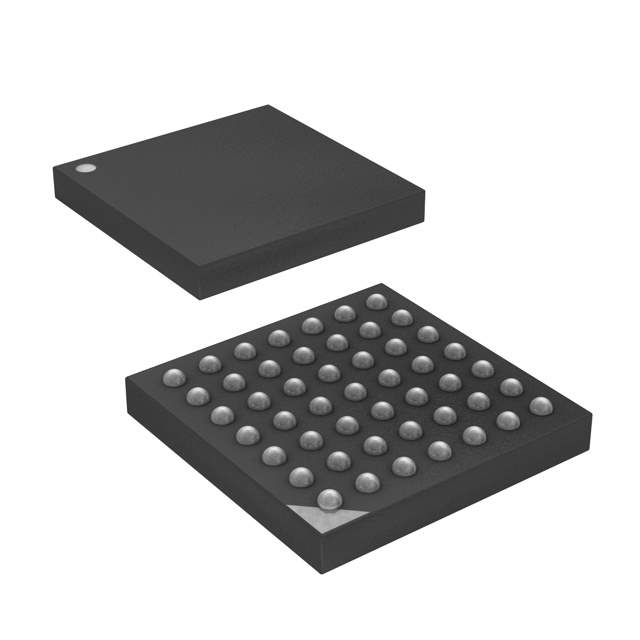

The LM8333GGR8AXSX/NOPB operates over a wide voltage range from 1.8V to 3.3V, which makes it suitable for battery-operated devices. Its low power consumption is critical for extending battery life in portable applications. The device comes in a small, lead-free, 36-bump micro SMD package, ensuring a compact footprint and ease of integration into system designs.

Key Features:

• Integrated keypad controller supporting up to an 8x8 matrix, allowing for up to 64 keys.
• 18 GPIOs which can be used for additional input or output functions.
• I²C/SPI interface for communication with the host processor.
• Programmable long key-press and debounce times.
• Auto-sleep and wake-up functionality for power management.
• Support for key press interrupt signaling to the host processor.

Applications:

• Mobile phones and smartphones
• Personal digital assistants (PDAs)
• Portable media players
• Handheld gaming devices
• Other devices requiring an extended keypad interface

The LM8333GGR8AXSX/NOPB is designed with the reliability and innovation associated with Texas Instruments. It provides a versatile, efficient, and space-saving solution for expanding the user interface capabilities of portable electronic devices. Whether you're designing a new product or upgrading an existing one, this Mobile I/O Companion can help you enhance functionality while minimizing design complexity and power consumption.
