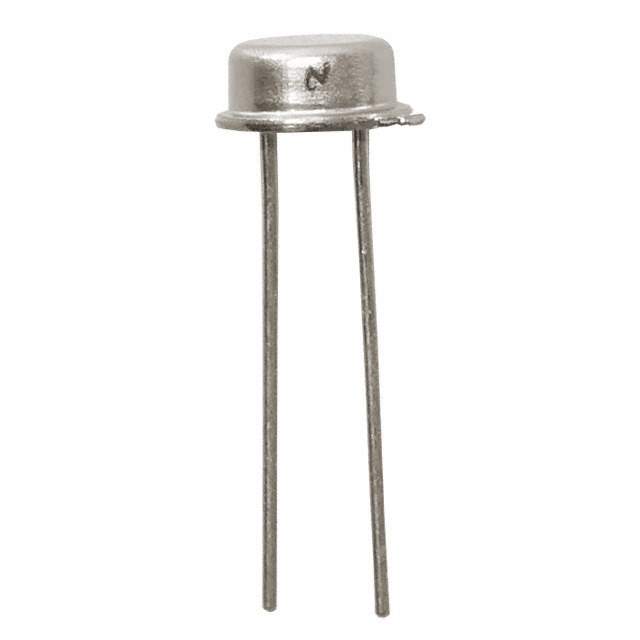

LM313H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Obsolete(EOL)
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 1.22V
Output Current 20mA
Tolerance ±5%
Noise - 10Hz to 10kHz 5μVrms
Current - Cathode 500μA
Temperature Range - Operating 0°C to 70°C (TA)
Mounting Through Hole
Case / Package TO-46-2, Metal Can
Win Source Part Number 071184-LM313H
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM313H CAD Model

Description

The LM313H is a high-quality, high-performance voltage regulator manufactured by Texas Instruments, a renowned global semiconductor company.

  • Output Voltage: 5 volts
  • Output Current: Up to 100mA
  • Stability: High
  • Accuracy: ±5% over the entire temperature range
  • Dropout Voltage: Low
  • Package: TO-39 metal can
