ISOW1432BDFMR

Part No ISOW1432BDFMR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description LOW EMISSIONS, 5-KVRMS, 12-MBPS  /  RS422, RS485 Digital Isolator 5000Vrms 4 Channel 12Mbps 100kV/µs (Typ) CMTI 20-SOIC (0.295", 7.50mm Width)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Texas Instruments
Package Tape & Reel (TR)
Technology Magnetic Coupling
Type RS422, RS485
Isolated Power Yes
Number of Channels 4
Inputs - Side 1/Side 2 2/2
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 100kV/µs (Typ)
Data Rate 12Mbps
Propagation Delay tpLH / tpHL (Max) 610ns, 610ns
Pulse Width Distortion (Max) 40ns
Rise / Fall Time (Typ) 4ns, 4ns (Max)
Voltage - Supply 1.71V ~ 1.89V, 2.25V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Base Product Number ISOW1432
Other Names 296-ISOW1432BDFMRTR
Standard Package 850
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243855-ISOW1432BDFMR

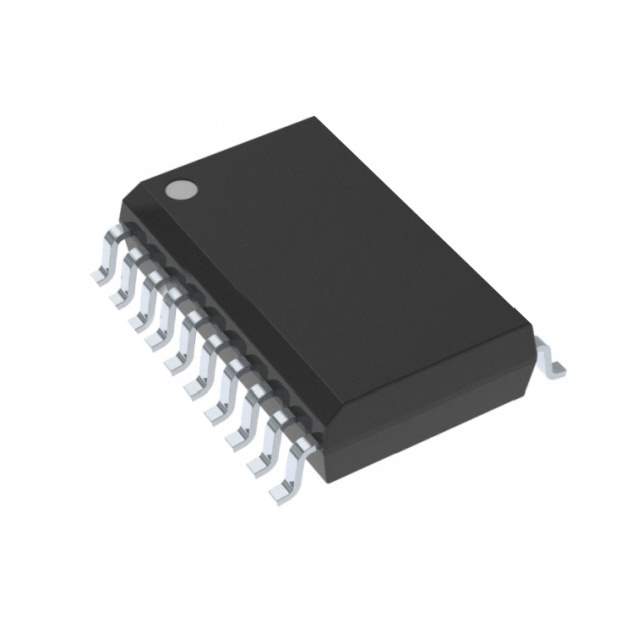

Ultra Librarian 3D Model Ultra Librarian ISOW1432BDFMR CAD Model

Description

ISOW1432BDFMR from Texas Instruments is a digital isolator designed for systems that need signal isolation between control and field-side circuitry while supporting reliable data transfer in electrically noisy environments. Devices in this category are commonly evaluated for industrial automation, isolated communications, motor-control subsystems, power electronics, test equipment, and embedded designs where safety, ground potential differences, or noise immunity matter. Texas Instruments is widely specified in long-life and performance-focused designs, making this part relevant for engineers seeking a recognized supplier in the digital isolation space. The current lifecycle status for ISOW1432BDFMR is information not available, so teams should confirm whether it is active, NRND, or otherwise constrained before locking it into new designs. RoHS compliance information is also not available in the provided data. Engineers and sourcing teams should verify the latest environmental declarations, datasheet details, and orderable status directly through Texas Instruments or authorized distribution before procurement.
