Products specifications

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Texas Instruments
Package Tube
Motor Type - AC, DC Brushless DC (BLDC)
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (3)
Interface SPI
Technology Power MOSFET
Applications General Purpose
Voltage - Supply 6V ~ 60V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)

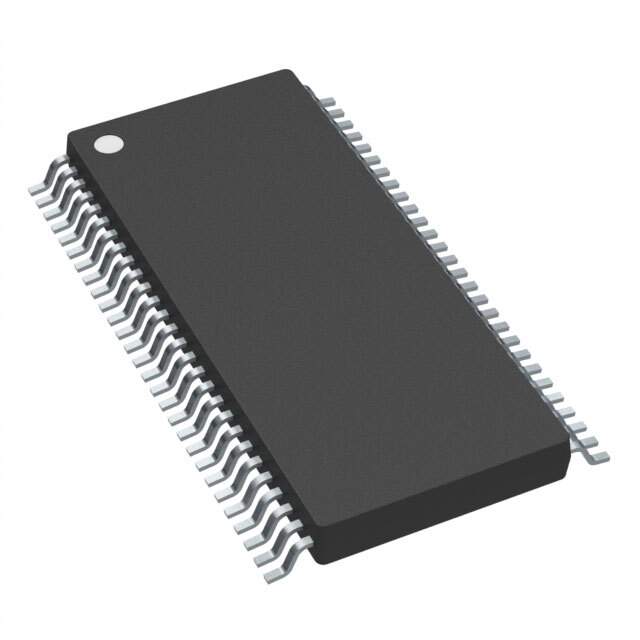

Package / Case 56-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package 56-HTSSOP
Base Product Number DRV8301
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Names 296-33274-5,DRV8301DCA-ND
Standard Package 35
Win Source Part Number 989769-DRV8301DCA
Ultra Librarian 3D Model Ultra Librarian DRV8301DCA CAD Model

Description

The DRV8301DCA is a high-performance, integrated motor driver from Texas Instruments, designed to efficiently drive brushless DC (BLDC) motors, which are commonly used in applications ranging from industrial automation to consumer electronics. This motor driver integrates a range of features that make it a versatile and reliable choice for designers and engineers looking to optimize their motor control systems.

Key Features

  • Integrated Gate Drivers: The DRV8301DCA comes with three half-bridge drivers capable of driving six N-type MOSFETs, which are essential for three-phase motor control. The gate drivers are designed to provide robust operation with fast switching speeds, enhancing motor performance.
  • Built-in Microcontroller Interface: It includes a hardware interface for microcontrollers, facilitating easy communication and control through a standard SPI or hardware interface.
  • Current Sense Amplifiers: The device features two current sense amplifiers for accurate current measurement, which is critical for advanced motor control algorithms like field-oriented control (FOC).
  • Protection Features: DRV8301DCA is equipped with a range of protection features, including under-voltage lockout, overcurrent protection, and thermal shutdown, which contribute to the longevity and reliability of the motor system.
  • Adjustable Gate Drive Voltage: The gate drive voltage is adjustable, allowing for optimization of the MOSFET driving according to the specific application needs.

Applications

  • Electric Bikes and Scooters
  • Industrial Pumps and Fans
  • Robotics and Automated Guided Vehicles (AGVs)
  • Home Appliances

With its robust design and comprehensive feature set, the DRV8301DCA from Texas Instruments is an ideal motor driver solution for a wide range of BLDC motor applications. Its high level of integration simplifies the design process, reduces board space, and enhances system reliability, making it a top choice for engineers and product designers.

For detailed technical specifications and application support, refer to the official Texas Instruments DRV8301DCA datasheet and design resources.
