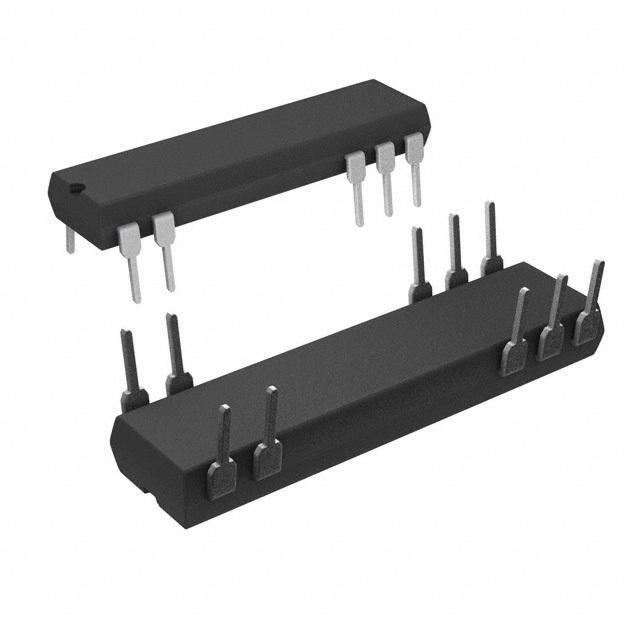

DCR010505P Texas Instruments DCR010505P Real Image
Same model may have multiple batches, images only for reference.
DCR010505P Texas Instruments DCR010505P Real Image
DCR010505P Texas Instruments DCR010505P Real Image
Same model may have multiple batches, images only for reference.

DCR010505P

Part No DCR010505P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 5V 0.2A 10DIP
Datasheet
DCR010505P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCR01
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features Remote On/Off, OTP, SCP
Mounting Style Through Hole
Package 18-DIP Module (10 Leads)
Size / Dimension 0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm)
Operating Temperature Range -40°C ~ 85°C
Power (Watts) - Max 1W
Win Source Part Number 013876-DCR010505P
Family Name DCR010505
Introduction Date August 01, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DCR010505P CAD Model

Description

DCR010505P - Reliable DC-DC Converter

The DCR010505P is a trusted choice for systems necessitating a compact and isolated power solution. It offers a straightforward approach to efficient power conversion while maintaining excellent isolation capabilities.

  • Voltage Input/Output: 5V/5V
  • Output Power: 1W
  • Isolation Rating: 1500V

Features and Benefits:

  • Compact footprint, optimal for miniaturized applications
  • High operational efficiency for energy savings
  • Strong isolation characteristics for added safety
  • Wide temperature range support for versatile environments

Applications:

  • Distributed power architectures
  • Data acquisition systems
  • Ethernet communication setups
  • Signal processing equipment
