Product Overview: Texas Instruments CSD95481RWJ

The Texas Instruments CSD95481RWJ is a state-of-the-art NexFET™ power stage solution designed to optimize power supply performance for synchronous buck applications in computing and consumer electronics. This highly integrated power management component combines the driver IC and two power MOSFETs in an advanced package to deliver high efficiency and power density.

Key Features

• High Performance: The CSD95481RWJ offers a high-efficiency power stage with reduced switching and conduction losses, making it an ideal choice for high-performance CPUs, GPUs, and memory power supplies.
• Integrated Design: The integration of the driver and MOSFETs into a single package allows for reduced parasitic inductance and increased system reliability.

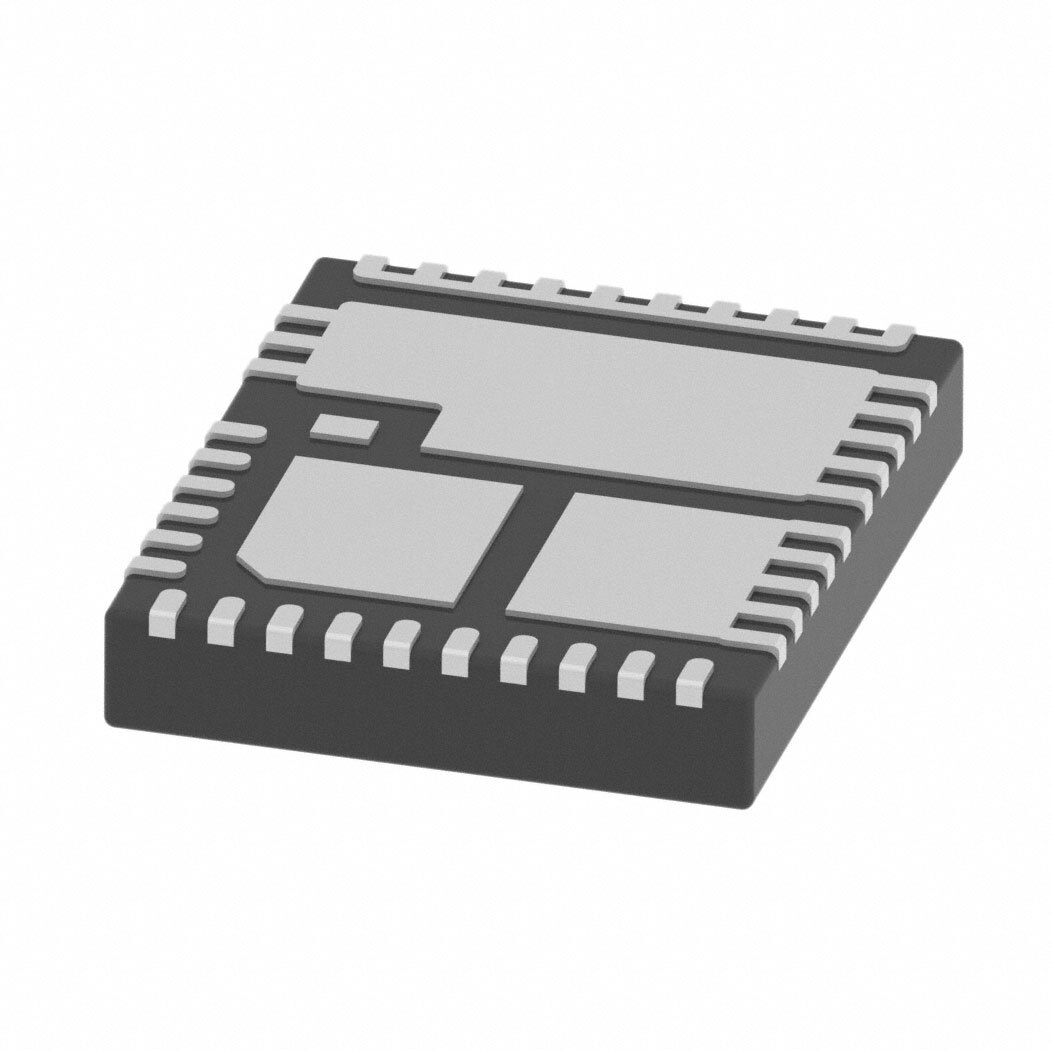

• Advanced Packaging: Encased in a 5x6mm QFN package, the product is designed for improved thermal performance and space-saving on the PCB.
• Adaptive Gate Drive: The adaptive gate drive scheme ensures optimal efficiency across a wide range of output currents.

Applications

The CSD95481RWJ is suitable for a broad range of applications, particularly where high efficiency and compact design are required. Some of the typical applications include:

• Desktop and Notebook PCs
• Graphics Cards (GPUs)
• Memory Power Supplies
• Point of Load (POL) Solutions
• High-Density Power Modules

Technical Specifications

The technical specifications of the CSD95481RWJ include a wide input voltage range, high current capability, and enhanced thermal performance. The device operates over a broad temperature range, ensuring stability and reliability in various environments.

Support and Resources

For engineers and designers, Texas Instruments provides extensive support and resources, including datasheets, reference designs, and application notes. These resources are designed to assist in the integration of the CSD95481RWJ into various platforms and to streamline the design process.
