Introducing the CSD25501F3T NexFET™ Power MOSFET by Texas Instruments

The CSD25501F3T is a high-performance, ultra-compact NexFET™ power MOSFET designed and manufactured by Texas Instruments, a global leader in semiconductor solutions. This advanced MOSFET is specifically engineered to deliver exceptional efficiency and power density, making it an ideal choice for a wide range of power management applications.

Key Features

• Low On-Resistance: The CSD25501F3T boasts an incredibly low on-resistance (R<sub>DS(on)) of just 25 mΩ at V<sub>GS = 4.5V, which translates to reduced conduction losses and enhanced overall efficiency.

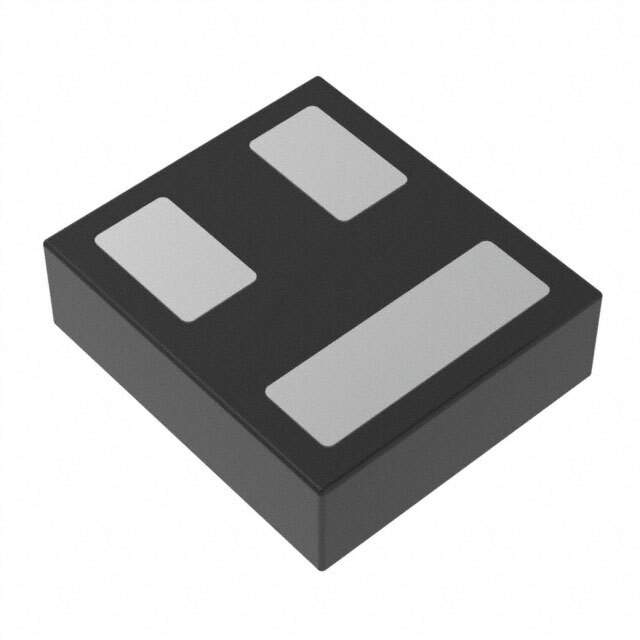

• Ultra-Small Footprint: Housed in a compact 0.73 mm x 0.73 mm plastic package, this MOSFET is perfect for applications where PCB space is at a premium.
• High Continuous Drain Current: With a continuous drain current (I<sub>D) of 8 A, this device can handle significant power without overheating, ensuring reliable performance under demanding conditions.
• Low Threshold Voltage: The device features a low threshold voltage, making it suitable for low-voltage applications that require efficient power control.

Applications

The versatility of the CSD25501F3T allows it to be used in a diverse array of applications, including:

• DC/DC Conversion
• Battery Management Systems
• Load Switches
• Power Supply Modules
• Portable Electronics

Technical Specifications

Some of the technical specifications that make the CSD25501F3T stand out include:

• Drain-Source Voltage (V<sub>DS): 12 V
• Gate-Source Voltage (V<sub>GS): ±8 V
• Operating Temperature Range: -55°C to 150°C
• RoHS Compliant

Conclusion

With its exceptional performance, small size, and robustness, the CSD25501F3T NexFET™ power MOSFET from Texas Instruments is an excellent choice for designers looking to improve the efficiency and power density of their applications. Whether it's for power supplies, battery management, or portable devices, this MOSFET is designed to meet the rigorous demands of modern electronic systems.
