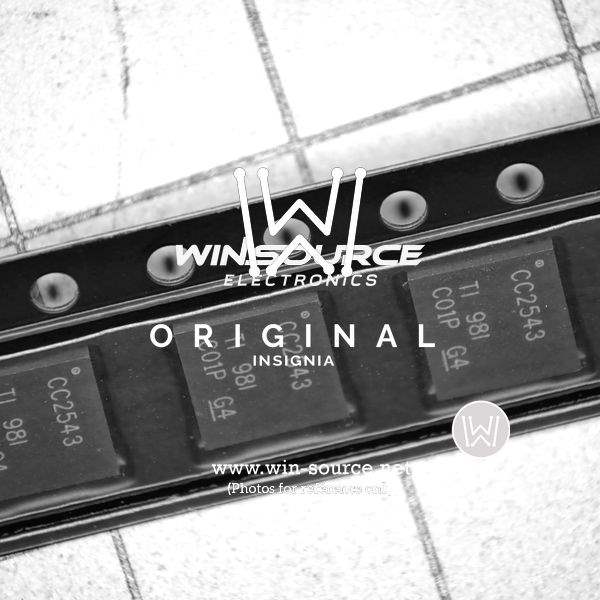

CC2543RHBR

Part No CC2543RHBR
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM>1GHZ 32-VFQFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard General ISM > 1GHZ
Modulation GFSK, MSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 5dBm
Sensitivity -98dBm
Memory Size 32kB Flash, 1kB SRAM
Serial Interfaces I2C, SPI, USART
GPIO 16
Supply Voltage - Operating 2 V to 3.6 V
Current - Receiving 21.2mA
Current - Transmitting 26mA to 29.4mA
Temperature Range - Operating -40°C to 85°C
Dimension 32-VFQFN Exposed Pad
Win Source Part Number 145144-CC2543RHBR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CC2543RHBR CAD Model

Description

CC2543RHBR Wireless MCU

The CC2543RHBR is designed for low-power wireless communication with a focus on supporting proprietary wireless protocol implementations rather than Bluetooth, opening doors for custom RF solutions.

  • Applications:
    • Proprietary RF Networks
    • Wireless Toys
    • Remote Sensing
    • Home and Building Automation
  • Features and Benefits:
    • Integrated 8051 MCU Core: Ensures high processing efficiency.
    • Efficient Power Management: Maximizes operational time.

    Additional Details: This versatile component complements systems that are driven by proprietary communication standards.
