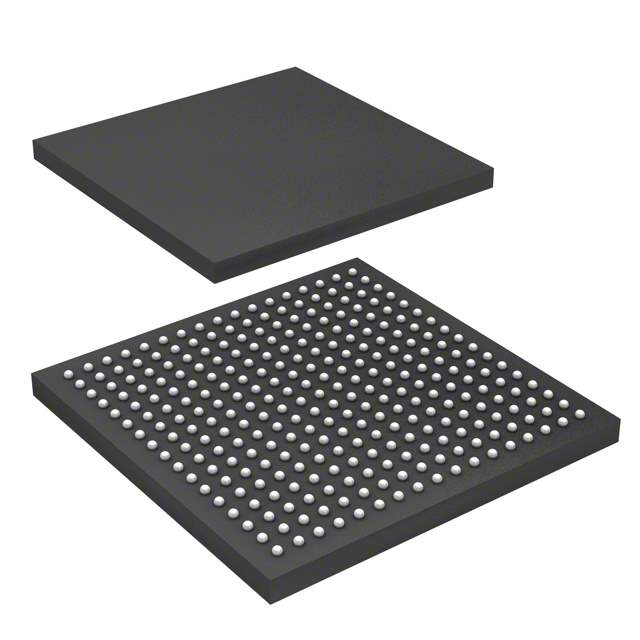

The AFE5816ZAV is a highly integrated, multi-channel analog front-end (AFE) designed by Texas Instruments, tailored for advanced ultrasound systems and other demanding medical imaging applications. This cutting-edge component combines high-performance data conversion with a flexible architecture to deliver exceptional image quality and system reliability.

Key Features

• High Channel Count: The AFE5816ZAV features 16 channels, each with a low-noise amplifier (LNA), a voltage-controlled attenuator, an anti-aliasing filter, and a 12-bit, 50-MSPS analog-to-digital converter (ADC). This integration enables compact system design and minimizes board space.
• Exceptional Image Quality: With an input-referred noise of just 0.75 nV/√Hz at a gain of 21.3 dB, the AFE5816ZAV ensures high sensitivity and dynamic range, critical for producing clear, detailed ultrasound images.
• Programmable Gain and Filters: Each channel's gain and filter settings are independently programmable, providing the flexibility needed to optimize performance for various imaging modes and applications.
• Advanced Digital Features: The device includes a digital demodulator with programmable decimation and a digital I/Q demodulator, facilitating digital beamforming and reducing FPGA processing requirements.

Applications

While the AFE5816ZAV is primarily designed for ultrasound imaging systems, its versatility makes it suitable for a wide range of medical applications, including:

• Portable and cart-based ultrasound systems
• Medical imaging and diagnostic equipment
• High-channel count imaging systems

Technical Specifications

The AFE5816ZAV from Texas Instruments represents a significant advancement in AFE technology, offering designers the precision, flexibility, and efficiency needed to push the boundaries of medical imaging.
