Products specifications

Win Source Part Number WS1204198-2301996-7
Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active

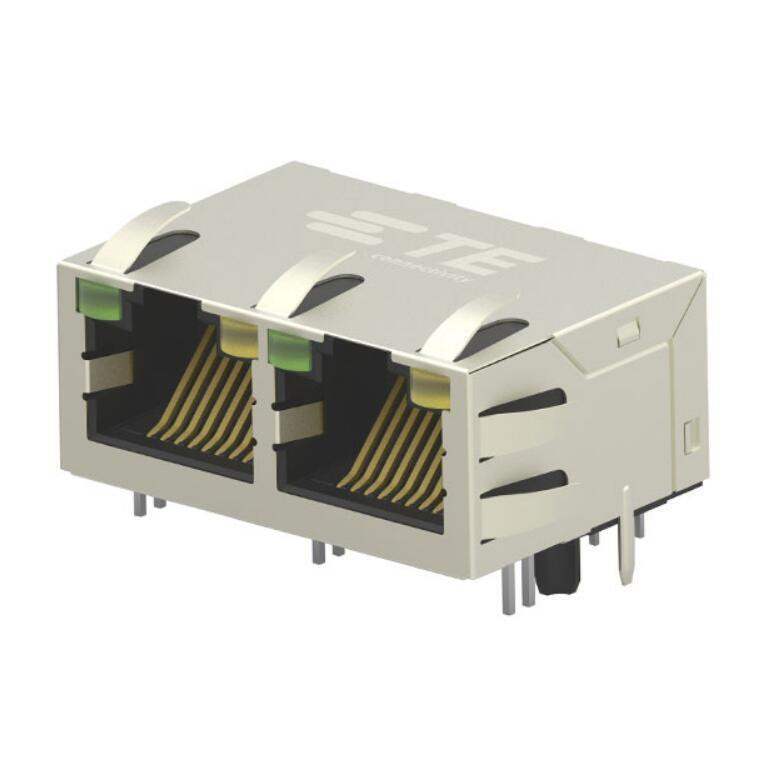

Connector Type RJ45
Number of Ports 2
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Ultra Librarian 3D Model Ultra Librarian 2301996-7 CAD Model

Description

This specification covers the requirements for application of RJ45 Jack with integrated Magnetics designed to be mounted to a Printed Circuit Board (PCB). The Jacks are available in low-profile, vertical, single-port or multi-port configuration in 6, 8, 10 or 12 positions with 8 contacts, shielded designs to accommodate specific application requirements. This specification pertains to all shielded jacks with right-angled (R/A) and vertical orientation, with single or multiple ports. When corresponding with TE Personnel, use the terminology provided on this specification to help facilitate assistance. Basic terms and features of components are provided in Figure 1.
