The AFE4403YZPT by Texas Instruments is a highly integrated, programmable analog front-end (AFE) that is specifically designed for heart rate monitors and optical bio-sensing applications such as photoplethysmography (PPG). This advanced AFE is ideal for wearable devices due to its small form factor and low power consumption.

Key Features:

• Highly Integrated Solution: The AFE4403YZPT integrates a low-noise receiver channel with a programmable transimpedance amplifier (TIA), ambient light cancellation (ALC), and a LED current driver, simplifying system design and reducing external component count.
• Low Power Operation: Designed for battery-powered devices, the AFE4403YZPT features a power-saving mode and an ultra-low shutdown current, making it suitable for continuous heart-rate and SpO2 monitoring applications.
• Flexible LED Driver: It includes a 6-channel LED driver capable of driving up to six LEDs in a time-multiplexed manner, which is a perfect fit for multi-wavelength measurements required in advanced bio-sensing applications.
• Configurable Sampling Rate: The device supports a wide range of data rates and modulates the LED pulse width and sampling rate, providing the flexibility to optimize for power and performance based on the specific application needs.
• Advanced Noise Reduction: The AFE4403YZPT employs a continuous-time digital oversampling technique, which, combined with an internal ambient light rejection circuit, significantly reduces signal noise and improves measurement accuracy.

Applications:

• Wearable Heart Rate Monitors
• Fitness Trackers
• Smart Watches
• Medical Diagnostic Equipment
• Portable Patient Monitoring Devices

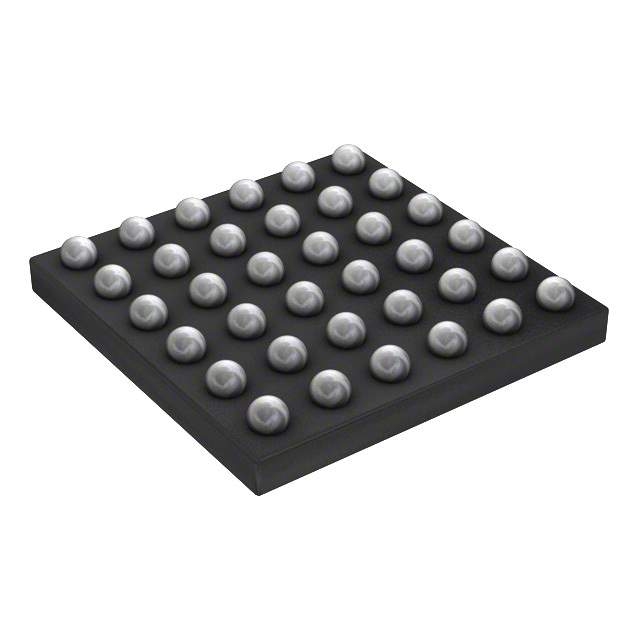

The AFE4403YZPT is provided in a compact 2.90 mm × 2.90 mm, 42-ball DSBGA package, which is optimized for space-constrained applications. Its comprehensive feature set and high level of integration make it an excellent choice for designers looking to create sophisticated health-monitoring devices with extended battery life and enhanced performance.
