Same model may have multiple batches, images only for reference.

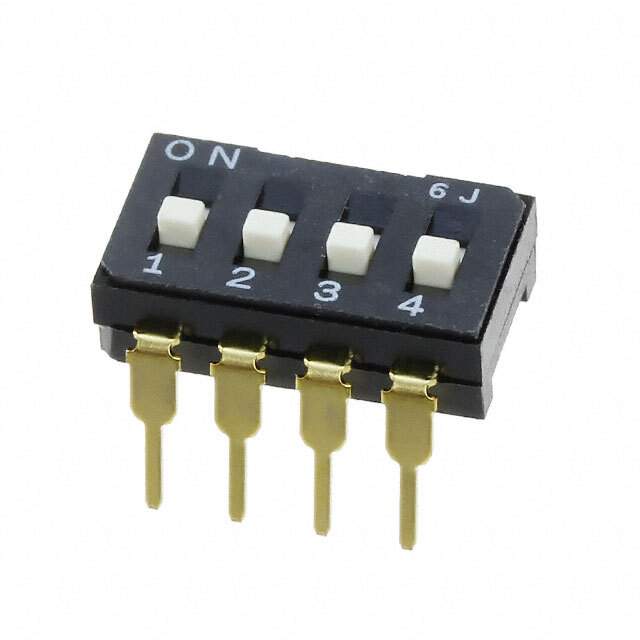

CFS-0402MC Real Image
Same model may have multiple batches, images only for reference.

CFS-0402MC

Part No CFS-0402MC
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SLIDE SWITCHES (FULL PITCH)
Datasheet
CFS-0402MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Series CFS
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.201" (5.10mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.457" (11.61mm)
Operating Temperature Range -40°C ~ 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1161372-CFS-0402MC
Manufacturer Homepage www.nidec-copal-electronics.com/e
Popularity Medium
Supply and Demand Status Limited
Family Name CFS
Introduction Date November 07, 2004
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CFS-0402MC CAD Model

Description

The CFS-0402MC is a 4-position switch manufactured by Copal Electronics Inc.

  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Circuit: SPST
  • Actuator Type: Slide, Standard
  • Body Material: Polyphenylene Sulfide (PPS)
  • Height Above Board: 0.201" (5.10mm)
  • Supply and Demand Status: Limited
