Product Overview: ADS1256EVM-PDK

The ADS1256EVM-PDK is a comprehensive development kit designed to assist in the rapid evaluation and prototyping of Texas Instruments' high-precision ADS1256 Analog-to-Digital Converter (ADC). This 24-bit delta-sigma ADC is known for its exceptional performance, making it an ideal choice for applications requiring high-resolution measurement, such as industrial process control, instrumentation, and medical systems.

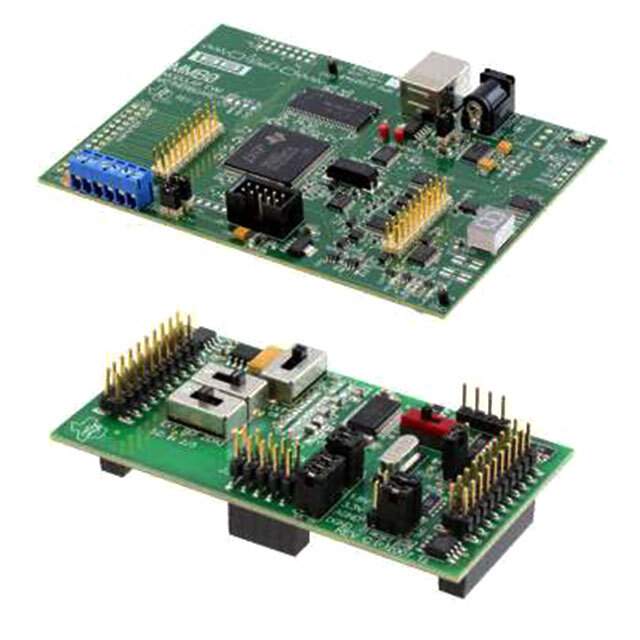

The kit includes the ADS1256 Evaluation Module (EVM), which serves as the central component for testing and evaluating the ADS1256 ADC. This module is designed for easy connection to a microcontroller or a digital signal processor through a variety of digital interfaces. The EVM also features a range of selectable reference voltages and input ranges to accommodate a wide array of signal types.

To facilitate quick setup and use, the ADS1256EVM-PDK comes with the necessary software, including an intuitive graphical user interface (GUI) that runs on a PC. This GUI allows users to configure the ADC’s settings and visualize the conversion results in real-time, simplifying the process of performance analysis and system optimization.

The kit also includes a Precision Development Kit (PDK) motherboard, which provides power and signal routing to the ADS1256EVM. This motherboard is compatible with other evaluation modules from Texas Instruments, making it a versatile tool for a variety of development tasks. The PDK motherboard includes an onboard processor to manage data flow and a USB interface for easy connection to a PC.

The ADS1256EVM-PDK is a powerful tool for engineers and designers looking to harness the capabilities of the ADS1256 ADC. With its user-friendly features, comprehensive software support, and flexible hardware, this development kit streamlines the process of integrating high-precision ADCs into a range of electronic systems.
