Introducing the ADS1192IRSMR from Texas Instruments

The ADS1192IRSMR is a high-performance, dual-channel analog-to-digital converter (ADC) from Texas Instruments, designed specifically for biomedical applications such as electrocardiograms (ECGs) and other portable medical devices. It is part of the ADS119x family, which is renowned for its precision and efficiency in processing small signal sensory data.

This integrated circuit features a 16-bit delta-sigma ADC with a built-in programmable gain amplifier (PGA), providing a versatile solution for medical signal acquisition. The ADS1192IRSMR operates at a data rate of up to 8k samples per second (SPS), ensuring high-resolution data capture for detailed analysis and monitoring.

The device is equipped with an array of features that make it ideal for battery-powered equipment. Its low power consumption, typically 335 µW at a data rate of 500 SPS, extends the battery life of portable devices. Furthermore, the ADS1192IRSMR incorporates a lead-off detection function, which is critical for ensuring reliable electrode connection in ECG and other body-sensing applications.

For enhanced signal quality, the ADS1192IRSMR includes an internal oscillator, a built-in right leg drive (RLD) amplifier, and a flexible input multiplexer (MUX) that allows for a variety of input configurations. This level of integration helps to simplify circuit design and reduce the number of external components required, leading to a more compact and cost-effective product design.

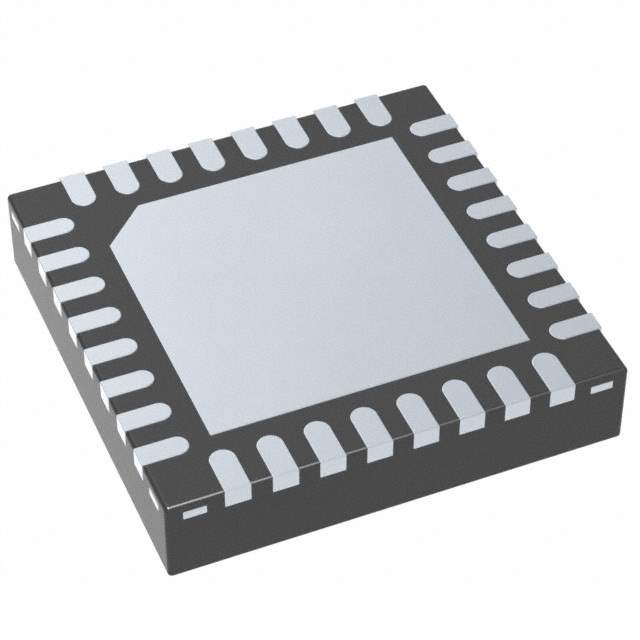

In terms of communication, the device features a SPI-compatible serial interface, which enables easy connection to microcontrollers and DSPs. The ADS1192IRSMR is available in a compact QFN-32 (5x5 mm) package, making it well-suited for space-constrained applications.

With its combination of high precision, low power, and integrated features, the ADS1192IRSMR is a top choice for developers and engineers who demand the best in medical-grade signal acquisition. Whether it's for a cutting-edge wearable health monitor or a traditional bedside patient monitor, this ADC from Texas Instruments stands ready to deliver the performance required for critical healthcare applications.
