Same model may have multiple batches, images only for reference.

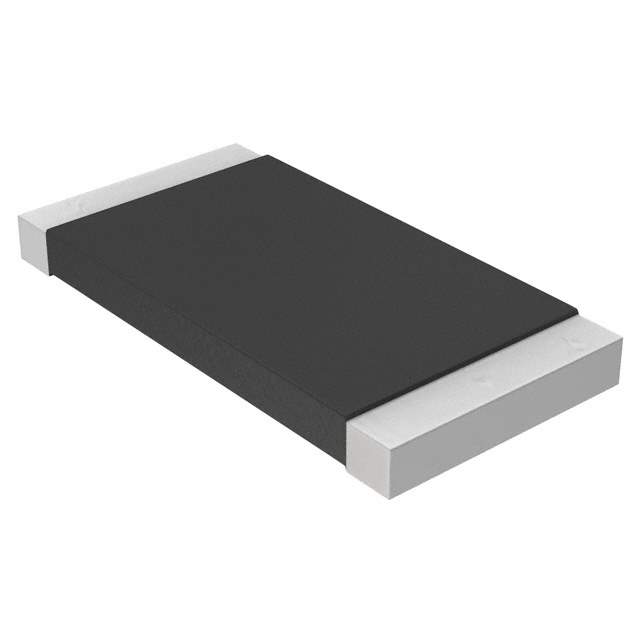

WSL2512R0100FEA Real Image
Same model may have multiple batches, images only for reference.

WSL2512R0100FEA

Part No WSL2512R0100FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.01 OHM 1% 2W 2512 / Res Metal Strip 2512 0.01 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD Automotive T/R
Datasheet
WSL2512R0100FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.01
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C to 170°C
Case / Package 2512
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
Win Source Part Number 116505-WSL2512R0100FEA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Power Management, Sensing & Instrumentation, Signal Processing, Automotive
Family Name WSL
Introduction Date August 11, 2004
ECCN EAR99
Country of Origin China, Israel, Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian WSL2512R0100FEA CAD Model

Description

The Vishay WSL2512R0100FEA is a 2W metal element resistor with a resistance of 0.01 ohms and a tolerance of ±1%.

  • Power: 2W
  • Composition: Metal Element
  • Resistance: 0.01 ohms
  • Tolerance: ±1%
  • Features: Pulse-withstanding
  • Temperature Range: -65°C to 170°C
  • Applications: Current sensing
  • Compliance: Automotive AEC-Q200 compliant, moisture resistant
  • Height: 0.035 inches
  • Terminations: Two
  • Family: WSL
  • Applications: Industrial, power management, sensing and instrumentation, signal processing, and automotive
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2028
