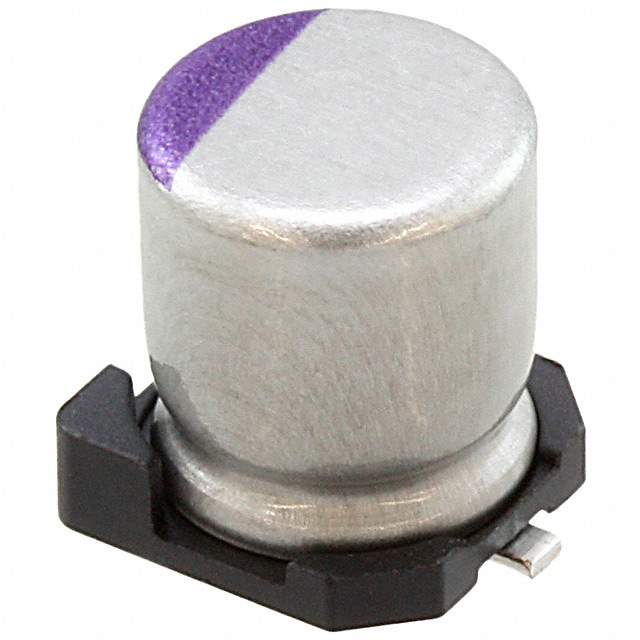

Same model may have multiple batches, images only for reference.

2R5SVPE390M

Name: 2R5SVPE390M
Brand: Panasonic
SKU: 993691
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2R5SVPE390M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 390UF 20% 2.5V SMD / 390 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPE
Package	Tape & Reel
Type	Polymer
Capacitance	390 µF
Tolerance	±20%
Voltage - Rated	2.5 V
ESR (Equivalent Series Resistance)	10mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	195 mA @ 120 Hz
Ripple Current @ High Frequency	3.9 A @ 100 kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	2R5SVPE
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P16534CT,P16534TR,P16534DKR
Standard Package	1,000
Win Source Part Number	993691-2R5SVPE390M
Ultra Librarian 3D Model	Ultra Librarian 2R5SVPE390M CAD Model

Description

This Panasonic Electronic Components capacitor is a polymer type with a capacitance of 390μF and a voltage rating of 2.5V.

Tolerance: ±20%
ESR: 10mOhm
Ripple Current (Low Frequency): 195 mA @ 120 Hz
Ripple Current (High Frequency): 3.9 A @ 100 kHz
Height: 0.236" (6.00mm)
Packaging: Tape and reel
Temperature Range: -55°C to 105°C
Dimension: 0.197" Dia (5.00mm)
MSL Level: Not applicable
Package Quantity: 1,000 pieces
