The ADS1192IPBS is a high-performance, integrated analog front-end (AFE) designed by Texas Instruments specifically for biopotential measurement applications. This precision AFE is ideal for portable and stationary medical equipment that requires electrocardiogram (ECG) and respiration measurement functionality.

Key Features

• Integrated Noise-Efficient AFE: The ADS1192IPBS features a low-noise, 16-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with a data rate of up to 8 kSPS, providing high-resolution signal acquisition.
• Dual-Channel: It is equipped with two differential or single-ended inputs, making it suitable for simultaneous acquisition of two biopotential signals.
• Low Power Consumption: With a power-saving design, it operates on a 2.7V to 3.6V supply, making it an excellent choice for battery-powered devices.
• Integrated Features: The AFE includes a built-in programmable gain amplifier (PGA), a right leg drive (RLD) circuit, and an oscillator, which simplifies the design and reduces external component count.
• Flexible Interface: The ADS1192IPBS communicates via an SPI-compatible serial interface, allowing for easy integration with microcontrollers and digital signal processors.

Applications

The ADS1192IPBS is designed for a wide range of medical and health-related applications, including:

• Portable and wearable ECG monitors
• Respiration monitors
• Defibrillators
• Biometric signal acquisition systems

Package and Quality

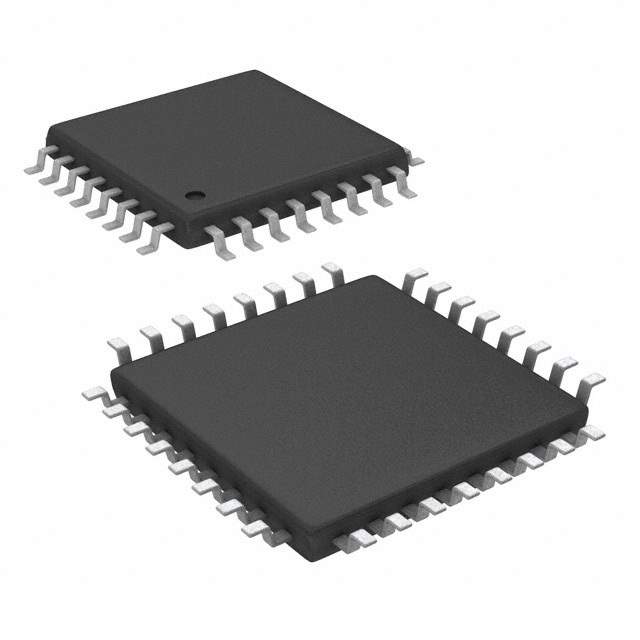

This device comes in a compact TQFP-32 package, which is ideal for space-constrained applications. Texas Instruments ensures high-quality and reliability, making the ADS1192IPBS a trusted choice for mission-critical medical systems.

Support and Resources

Developers can access a wealth of resources provided by Texas Instruments, including detailed datasheets, application notes, and design tools. TI's support community and technical resources are also available to assist with the design and development process.
