The ADC12138CIWMX is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) from Texas Instruments, designed to deliver precision and efficiency for a wide range of applications. This ADC features a maximum sampling rate of 38 kSPS (kilo-samples per second), making it an excellent choice for applications requiring both speed and accuracy.

Key Features

• Resolution: 12-bit resolution provides fine detail in the analog signal conversion, ensuring a high level of precision in the digital output.
• Sampling Rate: With a sampling rate of up to 38 kSPS, the ADC12138CIWMX is capable of converting analog signals at a high speed, suitable for real-time data processing.
• Low Power Consumption: Designed for power-sensitive applications, this ADC offers an efficient operation, minimizing the power requirements of the system.
• Single Supply Operation: It operates on a single 5V power supply, simplifying the power design of the system.
• Input Range: The input range is 0V to Vref, with Vref being the reference voltage that can be set according to the needs of your application.
• Interface: The device includes a user-friendly SPI (Serial Peripheral Interface) for easy communication with microcontrollers and microprocessors.

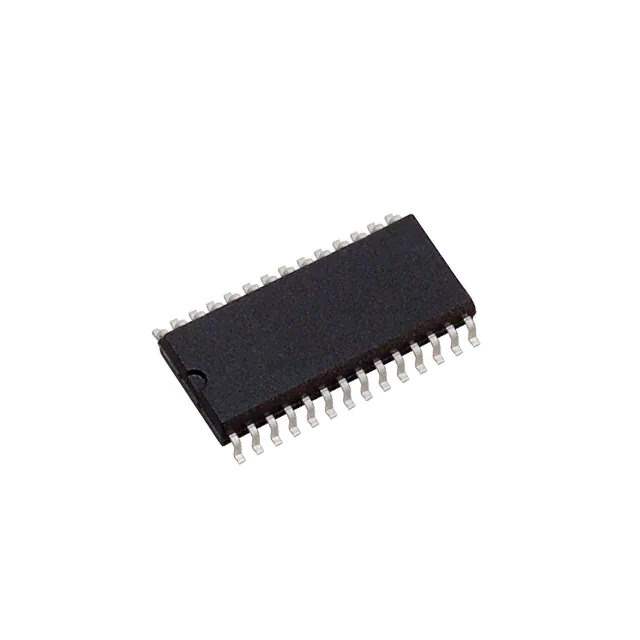

• Package: The ADC12138CIWMX is available in a compact 28-SOIC package, making it suitable for space-constrained applications.

Applications

The versatility of the ADC12138CIWMX makes it ideal for a variety of applications, including:

• Data acquisition systems
• Medical instruments
• Industrial control systems
• Battery-powered devices
• Communication systems

Conclusion

The Texas Instruments ADC12138CIWMX is a robust ADC solution that combines speed, precision, and power efficiency, making it a top choice for designers looking to enhance the performance of their digital systems. Its comprehensive feature set and ease of integration ensure it can meet the stringent demands of a wide range of sophisticated electronic applications.
