Same model may have multiple batches, images only for reference.

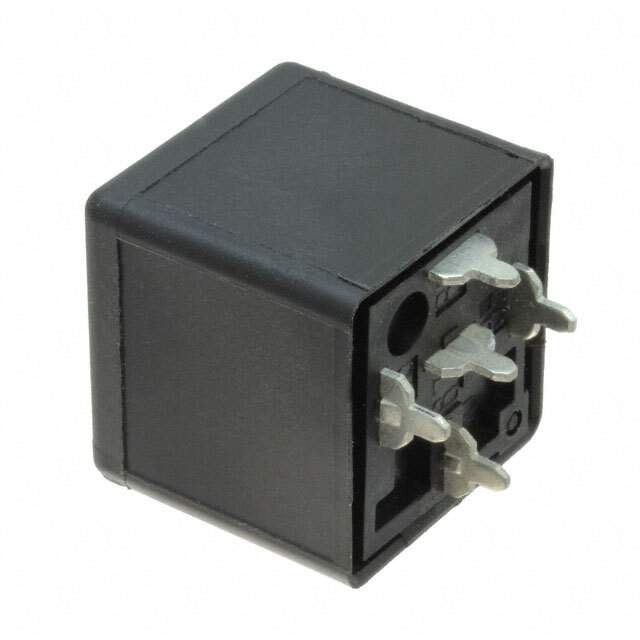

V23134A0053G243 Real Image
Same model may have multiple batches, images only for reference.

V23134A0053G243

Part No V23134A0053G243
Manufacturer TE Connectivity
Catalog Custom Parts (U - Z)
Description Power Relay 24VDC 120(NO)/45(NC)A SPDT(25.9x25.9x27.4)mm THT Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Power 1.6 W
Coil Resistance 324 Ω
Contact Material Silver
Current Rating 45 A
Depth 25.9 mm
Height 27.4 mm
Length 25.9 mm
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount PCB
RoHS Compliant
Termination Through Hole
Throw Configuration SPDT
Voltage Rating (DC) 24 V
Win Source Part Number 1183470-V23134A0053G243
Categories Custom Parts
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23134A0053G243 CAD Model

Description

The TE Connectivity V23134A0053G243 is a high-quality relay that is designed for use in various applications such as automotive, industrial, and telecommunications.

  • Supply and Demand Status: Limited
  • Contact Material: Silver
  • Current Rating: 45A
  • Operating Temperature: -40°C to 125°C
  • Voltage Rating: 24V DC
  • Throw Configuration: SPDT
  • Termination: Through-hole
