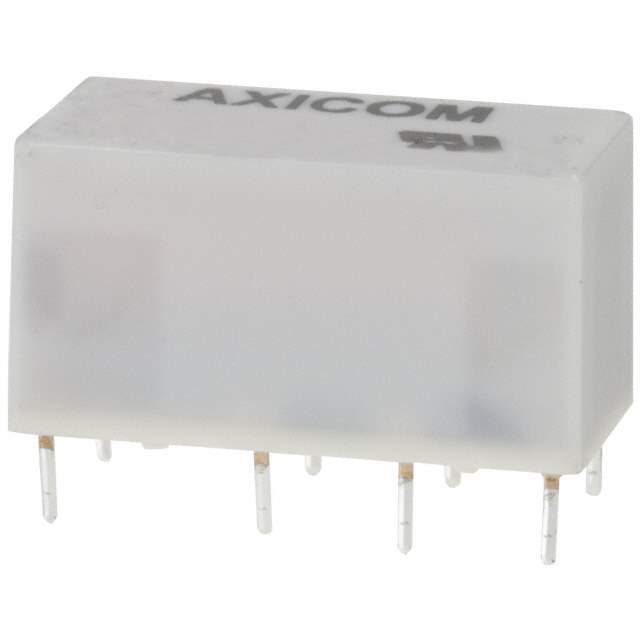

V23105A5401A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5401A201

Part No V23105A5401A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 5V / Telecom Relay DPDT (2 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23105, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.25 VDC
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 62 Ohms
Base Product Number V23105
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names PB1076,1393793-6
Standard Package 25
Win Source Part Number 1201670-V23105A5401A201
Ultra Librarian 3D Model Ultra Librarian V23105A5401A201 CAD Model

Description

The V23105-A5401-A201 relay from TE Connectivity Potter & Brumfield Relays is a DPDT (2 Form C) telecom relay with a switching voltage of 250VAC and 220VDC @ max.

  • Switching Voltage: 250VAC and 220VDC @ max
  • Coil Resistance: 62 Ohms
  • Coil Voltage: 5VDC
  • Operating Current: 80 mA
  • Operate Time: 6 ms
  • Release Time: 4 ms
  • Latching: Non-latching
  • Contact Rating (Current): 3 A
  • Mounting: Through the hole
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Standard Package: 25 relays
  • Suitable for: Use in power relays, over 2 amps
