Same model may have multiple batches, images only for reference.

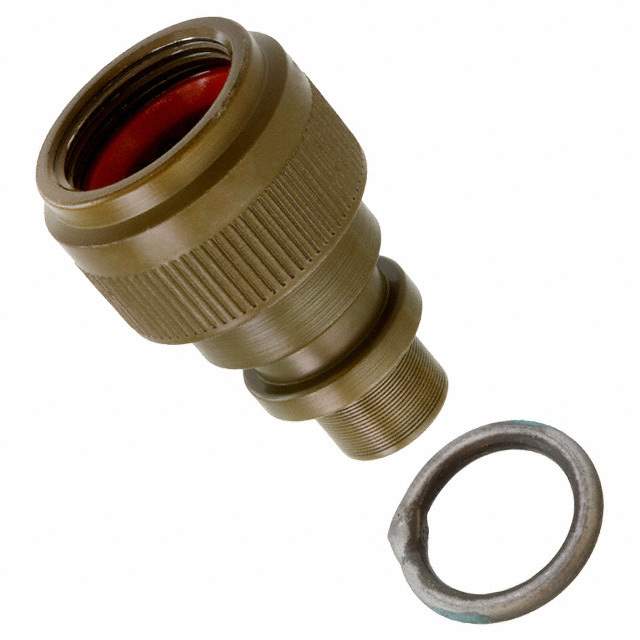

TXR40AB00-1004AI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB00-1004AI

Part No TXR40AB00-1004AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 11B OLIVE / Olive Drab Connector Backshell, Heat Shrink Adapter M15x1 11, B
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.827" (21.00mm)
Shell Size - Insert 11, B
Thread Size M15x1
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 726974000,726974-000-ND,726974-000,A144715,TXR40AB00-1004AI-ND
Standard Package 1
Win Source Part Number 1087237-TXR40AB00-1004AI
Ultra Librarian 3D Model Ultra Librarian TXR40AB00-1004AI CAD Model

Description

The TXR series backshell and heat shrink adapter is a circular connector designed for use with MIL-DTL-38999 Series III and IV.

  • Connector Type: Circular Connector
  • Compatible With: MIL-DTL-38999 Series III and IV
  • Material: Aluminum Alloy
  • Plating: Cadmium
  • Locking Feature: Tinel Lock
  • Package Includes: 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
  • Cable Exit: 180 Degrees
  • Thread Size: M15x1
  • Ingress Protection: Environment Resistant
  • Shielding: Shielded
  • Color: Olive Drab
  • Diameter: 0.827 inches (21.00mm)
  • Shell Size-Insert: 11, B
  • Material Flammability Rating: Not Available
  • Packaging: Bulk
  • RoHS Compliant: No
  • REACH Affected: Yes
