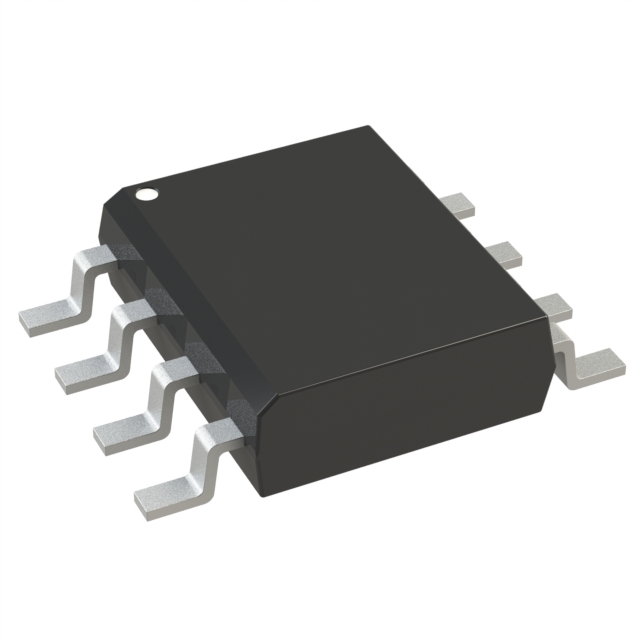

Same model may have multiple batches, images only for reference.
DMN6022SSD-13 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DMN6022SSD-13

Part No DMN6022SSD-13
Manufacturer Diodes Incorporated
Catalog FETs - Arrays
Description MOSFET 2N-CH 60V 6A 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsFET, MOSFET Arrays
Manufacturer Diodes Incorporated
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 6A (Ta), 14A (Tc)
Rds On (Max) @ Id, Vgs 29mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs 32nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 2110pF @ 30V
Power - Max 1.2W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number DMN6022
Ultra Librarian 3D Model Ultra Librarian DMN6022SSD-13 CAD Model
