Same model may have multiple batches, images only for reference.

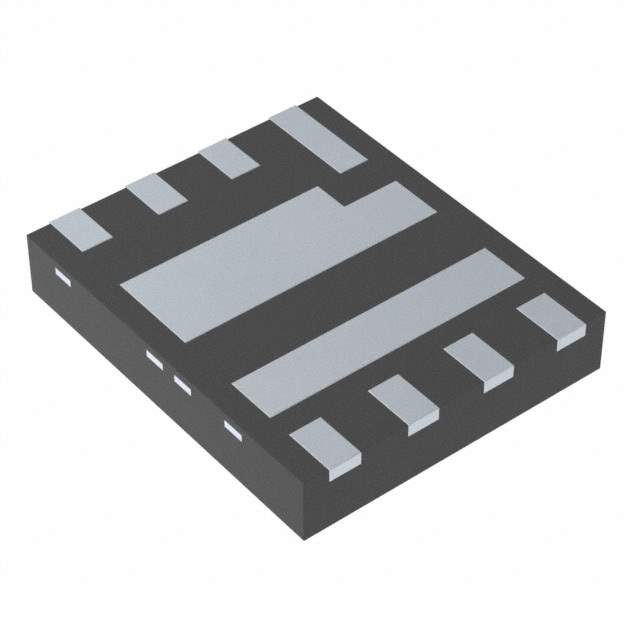

AOE6936 Real Image
Same model may have multiple batches, images only for reference.

AOE6936

Part No AOE6936
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Arrays
Description AOE6932 improves gate driving performance | MOSFET 2 N-CH 30V 55A/85A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tape and Reel
Transistor Polarity 2 N-Channel (Dual) Asymmetrical
FET Feature Standard
Vds - Drain-Source Breakdown Voltage 30V
Id - Continuous Drain Current 55A, 85A
Rds On (Maximum) at Id, Vgs 5mOhm at 20A, 10V, 2mOhm at 20A, 10V
Gate Source Voltage(th) (Maximum) at Id 2.2V at 250μA, 2.1V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 15nC at 4.5V, 25nC at 4.5V
Input Capacitance (Ciss) (Maximum) at Vds 1150pF at 15V, 2270pF at 15V
Maximum Power 24W, 39W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-VDFN Exposed Pad
Supplier Device Package 8-DFN (5x6)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1144939-AOE6936
Manufacturer Homepage www.aosmd.com
Family Name AOE6936
Introduction Date July 19, 2016
Country of Origin China
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOE6936 CAD Model

Description

The AOE6936 is a high-performance dual N-channel MOSFET designed and manufactured by Alpha & Omega Semiconductor Inc. It features a drain-source breakdown voltage of 30V, a continuous drain current of 55A, and a maximum on-resistance of 5mOhm at 20A and 10V.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 55A
  • On-Resistance: 5mOhm @ 20A and 10V (Maximum)
  • Applications: Power management, motor control, and DC-DC converters
  • Popularity: High
  • Supply and Demand: Balanced
  • Package: 8-DFN (5x6) with exposed pad
  • Power: 24W or 39W
  • Gate-Source Voltage Threshold: 2.2V @ 250μA
  • Gate Charge: 15nC @ 4.5V
  • Input Capacitance: 1150pF @ 15V and 2270pF @ 15V
